The Stainless Steel 904L Tube Fittings are primarily made up of iron, chromium, nickel, and molybdenum, with carefully controlled amounts of copper and carbon to boost corrosion resistance and mechanical strength. This high-alloy mix provides outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, even in harsh environments. On the mechanical side, these fittings boast high tensile and yield strength, exceptional toughness, and good elongation, making them perfect for high-pressure and high-temperature situations. Their precise design and weldability ensure secure and durable connections in critical piping systems.
| Specifications | : | ASTM S182 / A276 ASME SA 479 |
| Tube Size | : | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE, etc. |
| Brass | : | ASTM B16 ASTM B 453 |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| SS 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 23 – 28 | 4 – 5 | 1 – 2 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
At Khaleed Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 904L Tube Fittings in Riyadh, Saudi Arabia. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the Saudi Arabia, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

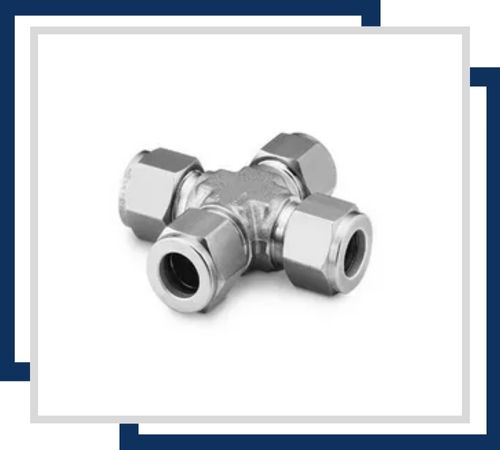

Stainless Steel 904L Union Cross connects four tubes at a right angle. It typically comes in sizes ranging from 1/4″ to 2″. Known for its exceptional corrosion resistance, it is ideal for highly corrosive environments.
Stainless Steel 904L Reducer Union smoothly transitions two different tube sizes. Available in sizes from 1/4″ to 2″ and designed for high corrosion resistance, it’s perfect for managing flow changes in corrosive settings.

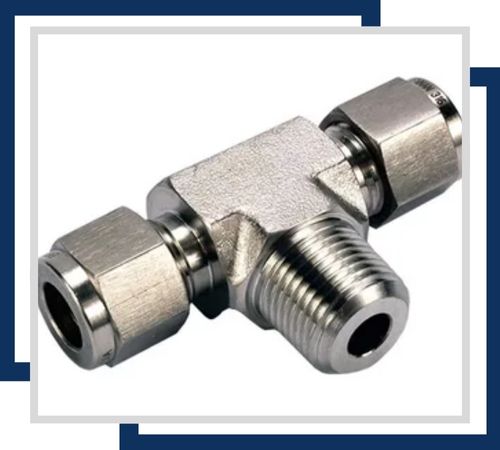

Stainless Steel 904L Male Branch Tee features a male thread on the branch and is used to create a branch connection. It is available in sizes from 1/4″ to 2″ and offers excellent resistance to corrosion, making it suitable for harsh environments.

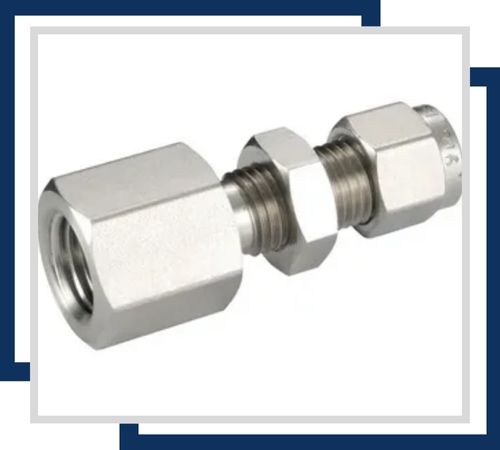

The Stainless Steel 904L Female Connector is designed to join two tubes with female threads. It comes in sizes from 1/4″ to 2″ and is highly corrosion resistant, ideal for chemical processing and marine applications.

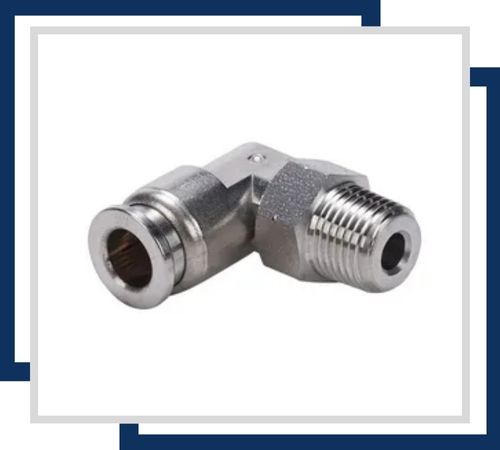

Stainless Steel 904L Male Elbow allows for a 90-degree change in the direction of the tubing. Available in sizes from 1/4″ to 2″, it provides superior corrosion resistance and is suitable for complex piping systems in corrosive environments.
A Stainless Steel 904L Male Connector connects two tubes with male threads. It is available in sizes from 1/4″ to 2″ and offers high resistance to corrosion, making it ideal for use in aggressive chemical environments.
Khaleed Stainless is a leading supplier and stockist of high-quality Stainless Steel 904L Tube Fittings in Riyadh, Saudi Arabia. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
These Stainless Steel 904L Tube Fittings find extensive use in industries that demand resistance to highly corrosive environments and dependable fluid transport. They’re commonly utilized in chemical processing plants, offshore oil and gas operations, desalination facilities, pharmaceutical manufacturing, and power generation systems. Their durability and corrosion resistance make them ideal for handling acids, chlorides, and other aggressive chemicals. Plus, their straightforward installation, leak-proof performance, and long-term reliability make them a go-to choice for industries where safety, efficiency, and maintenance-free operation are paramount.
