Home > Forged Fittings > Stainless Steel 304/304LForged Fittings
Khaleed Stainless is a well-respected manufacturer and supplier based in Riyadh, Saudi Arabia, specializing in top-notch Stainless Steel 304/304L Forged Fittings. These fittings are crafted for durability, strength, and outstanding resistance to corrosion. You’ll find them widely used across various industries, including chemical, petrochemical, oil & gas, food processing, pharmaceuticals, and marine sectors, where secure and leak-proof piping connections are essential. Built to meet international standards, these Stainless Steel 304/304L Forged Fittings ensure reliable performance, a long service life, and impressive strength, making them the go-to choice for critical fluid and gas handling tasks.
These fittings are made from a blend of iron, chromium (18–20%), and nickel (8–12%), with the 304L grade featuring a lower carbon content that enhances resistance to intergranular corrosion after welding. On the mechanical side, they boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and good elongation, which together ensure toughness, durability, and excellent workability. Their robust resistance to oxidation and chemical attacks makes them suitable for both high- and low-temperature applications.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.
At Khaleed Stainless, all stainless steel 304/304L forged fittings are rigorously tested to ensure quality and reliability. Our products are certified to meet international standards, including ISO, ASTM and ASME specifications. We also provide material test certificates (MTCs), third-party inspection reports and traceability documents to verify performance and compliance.
These fittings offer excellent corrosion resistance, particularly against oxidation and atmospheric corrosion. Typically available in sizes ranging from ¼ inch to 4 inches, they are designed for high-pressure applications and are widely used in piping systems for their strength and durability.

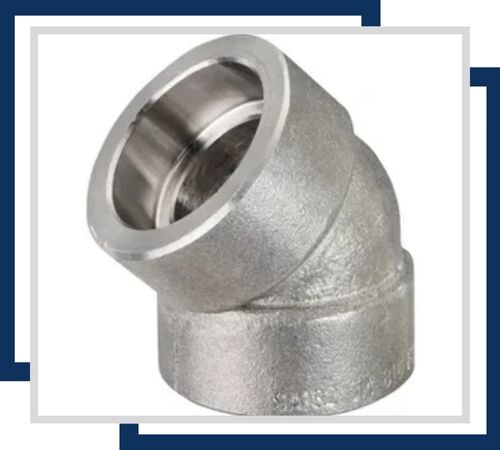

Offering excellent corrosion resistance, this 45-degree elbow is designed to redirect flow in a piping system. Available in sizes from ¼ inch to 4 inches, it is suitable for high-pressure and high-temperature applications, ensuring reliable and leak-proof connections.
Highly resistant to corrosion, this elbow facilitates changes in direction with a 45-degree bend. Standard sizes range from ½” to 4″ in diameter. It redirects its flow in pipelines, especially in chemical and petrochemical industries.

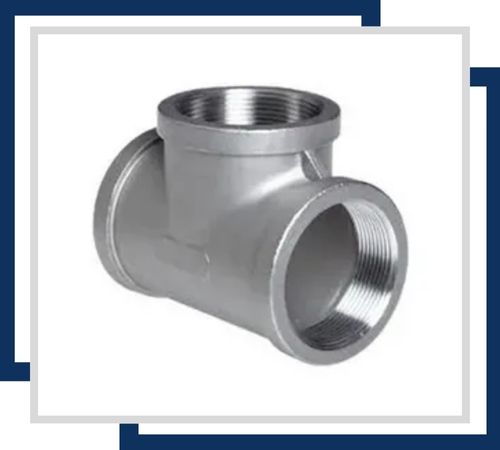

With robust corrosion resistance, this tee fitting branches off a pipeline. Available in sizes from ¼ inch to 4 inches, it allows flow distribution in three directions, making it versatile for various industrial applications.

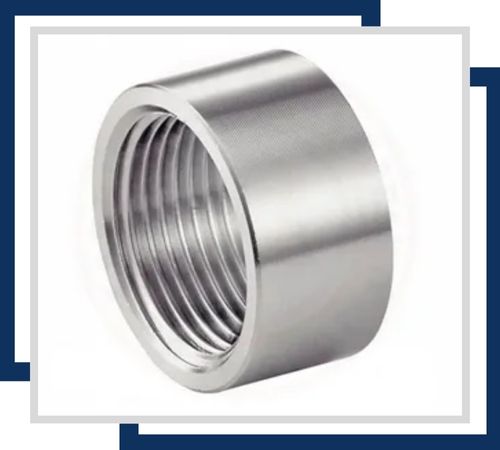

Providing strong corrosion resistance, this half coupling connects two pieces of pipe. Sizes range from ¼ inch to 4 inches, and it is ideal for applications requiring a reliable and secure connection in both industrial and residential settings.

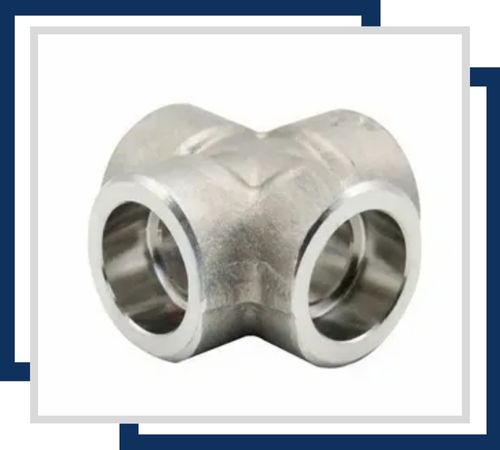

Featuring excellent corrosion resistance, this cross-fitting allows for connecting four pipes. It is available in sizes from ¼ inch to 4 inches and is commonly used in complex piping systems requiring multiple branches.
You’ll often find Stainless Steel 304/304L Forged Fittings in high-pressure piping systems, valves, pumps, heat exchangers, and marine equipment. Their ability to handle corrosive media, oxidizing environments, and temperature fluctuations guarantees safe and leak-proof operation. With exceptional weldability, formability, and corrosion resistance, these fittings provide reliable and long-lasting solutions for a wide range of industrial and engineering needs.
