Khaleed Stainless is a reputable manufacturer and supplier of Stainless Steel 904L Sheets and Plates based in Riyadh, Saudi Arabia. They pride themselves on delivering top-notch products that are built for strength, durability, and outstanding resistance to corrosion. These sheets and plates are particularly known for their ability to thrive in highly aggressive environments, making them a go-to choice in industries like chemical processing, marine, petrochemical, pharmaceuticals, and power generation. Crafted with precision and in line with international standards, Stainless Steel 904L Sheets and Plates promise superior performance, excellent formability, and a long service life. Khaleed Stainless is committed to providing reliable and consistent quality for critical industrial and structural applications.
The composition of Stainless Steel 904L Sheets and Plates includes high levels of chromium, nickel, and molybdenum, along with copper and very low carbon content. This unique alloy structure grants them exceptional resistance to both reducing and oxidizing acids, as well as protection against chloride-induced stress corrosion cracking and pitting. They boast tensile strength ranging from 490 to 710 MPa, high yield strength, and impressive elongation, ensuring they remain tough and ductile. These sheets and plates also maintain their mechanical stability under both elevated and cryogenic temperatures, while the low carbon content helps prevent carbide precipitation during welding, ensuring excellent weldability and long-lasting corrosion resistance.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

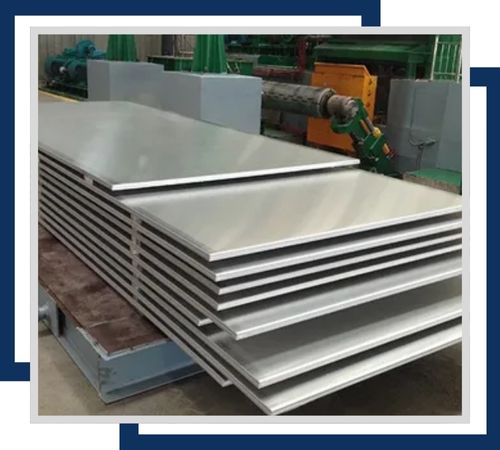

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

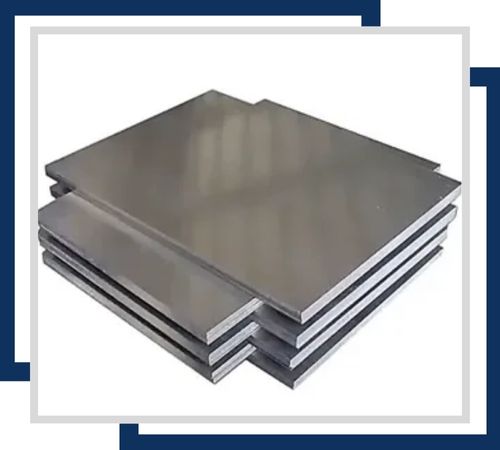

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

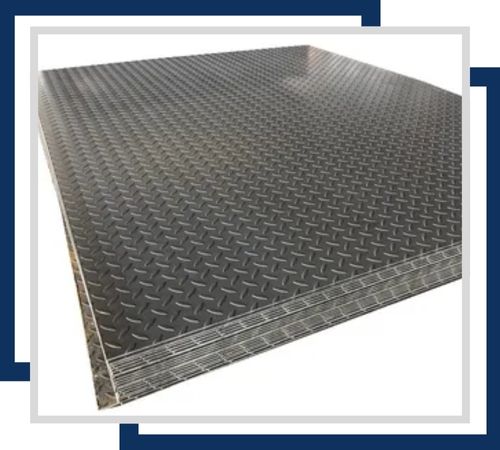

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

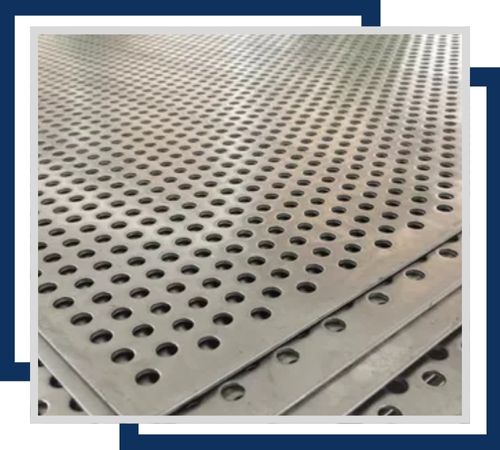

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

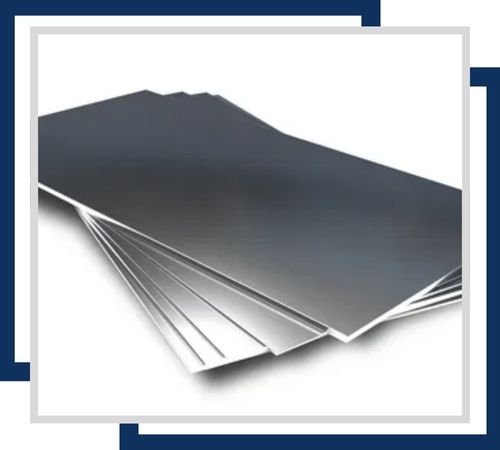

Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

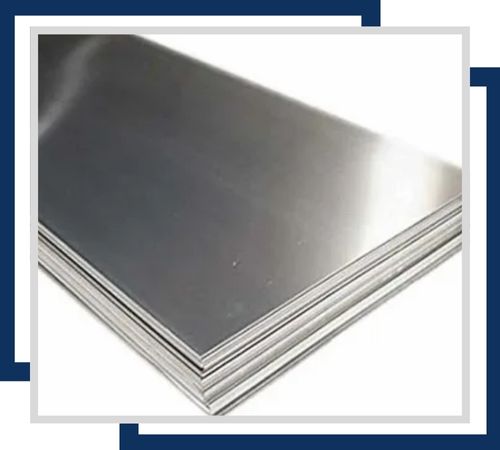

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Khaleed Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
Stainless Steel 904L Sheets and Plates find extensive use in industries that require high corrosion resistance and strength. They’re commonly found in chemical plants, heat exchangers, marine environments, and desalination equipment, where exposure to harsh chemicals and seawater is a regular occurrence. In the pharmaceuticals and food processing sectors, they play a crucial role in ensuring hygiene and safety under demanding operating conditions. Additionally, they are utilized in power generation, gas processing, and pollution control equipment, as well as in various structural and architectural projects. Their durability, versatility, and resistance make them a preferred choice across many applications.
