Khaleed Stainless stands out as a premier manufacturer and supplier of Stainless Steel 440C Sheets and Plates in Riyadh, Saudi Arabia. We pride ourselves on delivering top-notch stainless steel solutions tailored for industries that demand high strength and exceptional wear resistance. Stainless Steel 440C is a high-carbon martensitic stainless steel grade, celebrated for its remarkable hardness, toughness, and decent corrosion resistance. Our 440C sheets and plates are meticulously crafted to adhere to international quality standards. Thanks to their impressive performance in tough environments, these Stainless Steel 440C Sheets and Plates find extensive applications in aerospace, petrochemical, marine, and engineering fields.
Our Stainless Steel 440C Sheets and Plates are made up of high carbon (0.95–1.20%) and chromium (16–18%), along with trace amounts of molybdenum, manganese, and silicon. This unique blend results in outstanding wear resistance, hardness, and mechanical strength. They boast a tensile strength ranging from 760 to 1000 MPa, yield strength between 450 and 500 MPa, and can achieve hardness levels of up to 58 HRC after heat treatment. These sheets and plates offer a perfect mix of excellent abrasion resistance and durability, making them ideal for components that face mechanical stress and moderately corrosive conditions.
| ASME/ASTM Grade | ASTM A480 / ASME SA480 |
| Width Available | 1800mm, 3000mm, 1500mm, 2000mm, 1000mm, 2500mm, 1219mm, 3500mm etc |
| Thickness | 4mm – 100mm |
| Supply Length | 2000mm, 2440mm, 6000mm, 5800mm,3000mm etc |
| Most Commom Finish | SATIN (Met with Plastic Coated), 2B, Cold rolled sheet (CR), BA NO(8), Hot rolled plate (HR), 2D |
| Surface types | sand blast, etching, NO.1, embossed, hair line, 2B, Brush, BA, 2D, checkered, NO.8, 8K, NO.4, mirror, etc |
| Available Plate Form with us | Foils, Perforated Sheets, Plain Sheet, Coils, Rolls, Flats, Shim Sheets, Chequered Plate, Strip, Blank (Circle), Ring (Flange) etc. |
| Mo | S | C | Cr | Si | Mn | N | Ni | P |
| 0.75 | 0.03 | 0..95-1.20 | 16.00-18.00 | 1 | 1 | – | – | 0.04 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

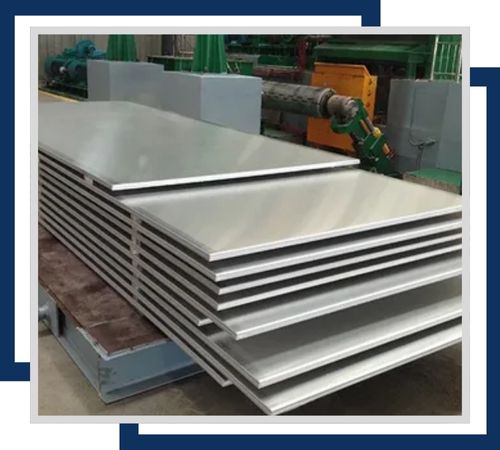

Stainless Steel 440C Hot Rolled Sheets have a high corrosion resistance and durability to be used for applications that need high strength. Usually available from 3mm to 50mm in thickness and up to 2000mm in width. These sheets are used for heavy-duty conditions where strength and toughness are in demand.

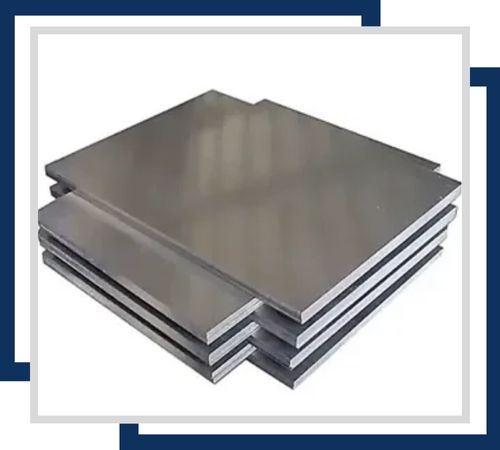

Stainless Steel 440C Cold Rolled Plates have excellent corrosion resistance and a smooth finish. The plates are generally supplied in the thickness of 0.5mm to 6mm and width up to 1250mm. The plates are best suited for applications where precision is needed along with high-quality surface finish.

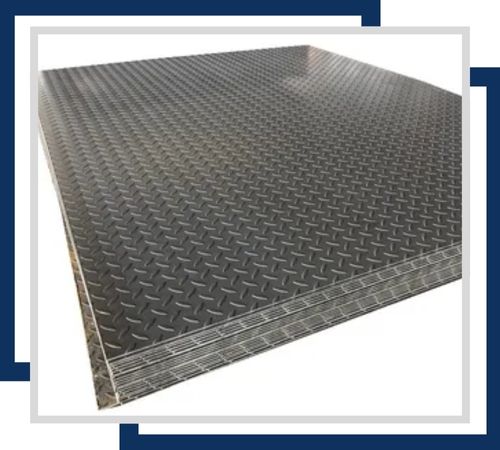

Stainless Steel 440C chequered sheet is used that provides raised patterns for enhanced friction resistance and scratch resistance. Highly corrosion resistant products with sizes as follows: -Thickness range 1.5 mm to 6 mm. They are available in standard sizes up to 1000mmx2000mm. Flooring application, safety purpose, industrial areas, etc.

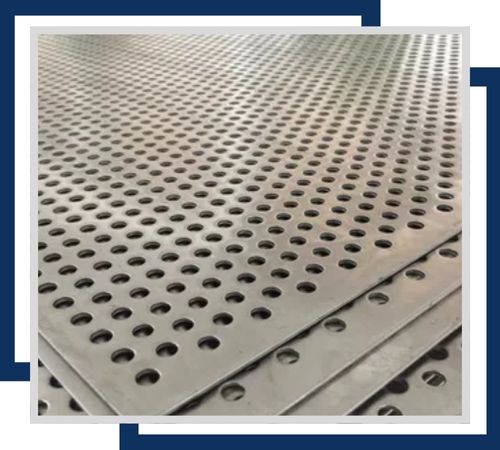

Stainless Steel 440C Perforated Sheets combine corrosion resistance with functional perforations for ventilation and filtration. Thickness ranges from 0.8mm to 6mm, with hole sizes and patterns. The sheets are used in architectural, industrial, and filtration applications where strength and design flexibility are needed.

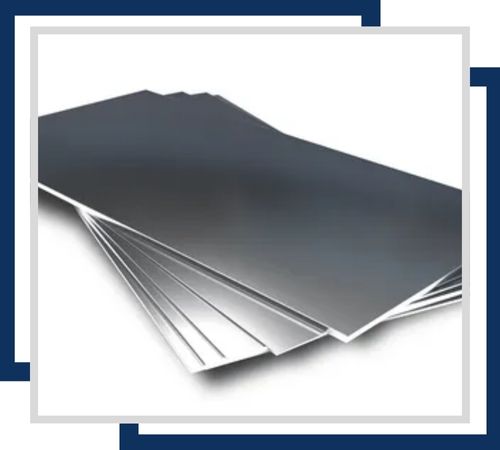

Stainless Steel 440C shim plates are provided with precise thickness tolerances and excellent corrosion resistance. They are available in the range starting from the thickness of 0.1mm up to 300mm width. It is ideal for applications requiring the proper spacing and adjustment, and for such machinery and assembly, it is preferred.

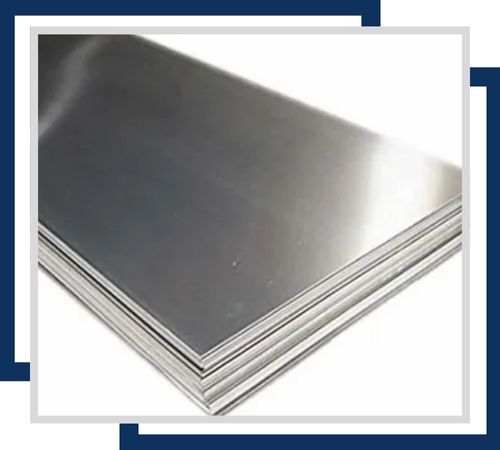

Stainless Steel 440C Polished Sheets offer a bright luster appearance with excellent corrosion resistance. Generally available in 0.5mm to 10mm thicknesses and up to 2000mm widths. These sheets are used in decorative and high-end applications where aesthetics and durability are important.
Khaleed Stainless specializes in bringing excellent customer experience with complete documentation for the superior-quality Stainless Steel 440C Sheets and Plates we offer to our customers. We provide commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports that prove authentic and superior quality. In addition, all our Stainless Steel 440C Sheets and Plates are provided with various test certificates such as MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These detail documents reflect that we are very customer-centric, and we aim for excellence with our products.
Stainless Steel 440C Sheets and Plates are widely utilized in applications where high hardness and wear resistance are essential. In the aerospace and automotive sectors, they play a crucial role in the production of engine parts, bearings, gears, and other high-strength components. In the petrochemical and marine industries, they are integral in creating valves, pump components, and offshore structures. Additionally, they are used in medical instruments, industrial blades, and precision tools. With their exceptional strength and durability, 440C sheets and plates guarantee long-lasting performance in even the most demanding industrial and engineering applications.
