Khaleed Stainless is a trusted manufacturer and supplier of Stainless Steel 416 Tubing based in Riyadh, Saudi Arabia. They offer high-quality tubing solutions that are celebrated for their strength, machinability, and durability. Each tube is crafted with precision and adheres strictly to international standards, ensuring they perform exceptionally well even in tough environments. The Stainless Steel 416 Tubing is known for its good corrosion resistance, mechanical strength, and excellent machinability, making it a popular choice in industries like automotive, petrochemical, machinery, and general engineering.
This tubing is primarily made up of chromium, along with carefully controlled amounts of carbon, manganese, sulfur, and molybdenum, which contribute to its unique machinability and durability. It boasts a tensile strength that ranges from 550 to 700 MPa, along with solid yield strength and reliable elongation, ensuring it remains tough and formable. The addition of sulfur enhances machinability while still providing decent corrosion resistance in moderately aggressive environments. Its martensitic structure gives it good hardness and wear resistance, and heat treatment further boosts its mechanical properties, making it ideal for precision applications.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.

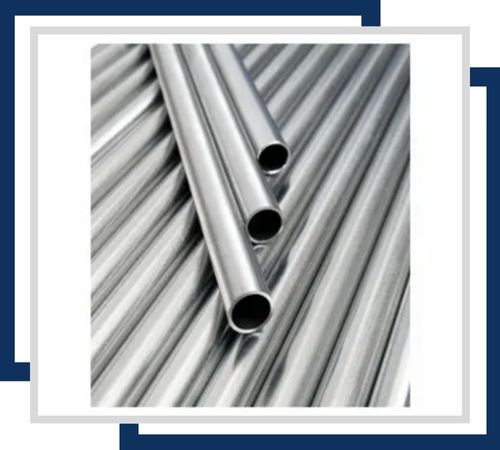

Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.

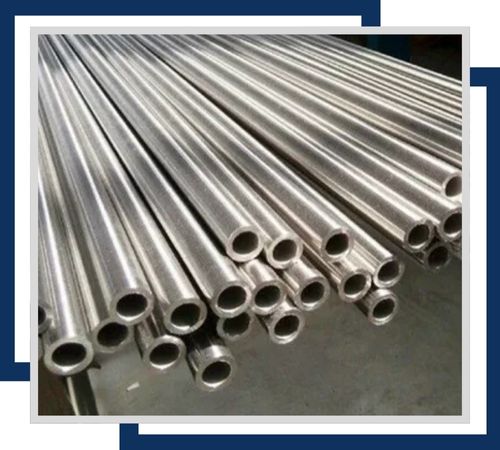

With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.

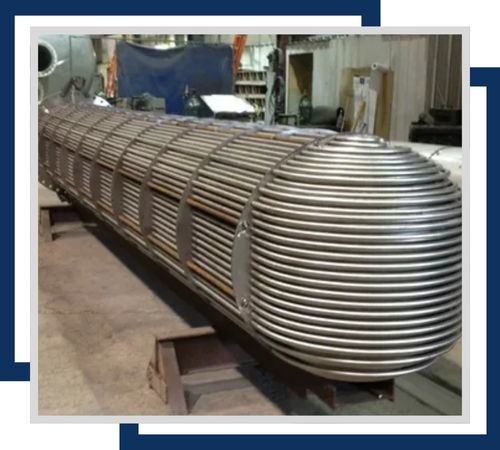

Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.

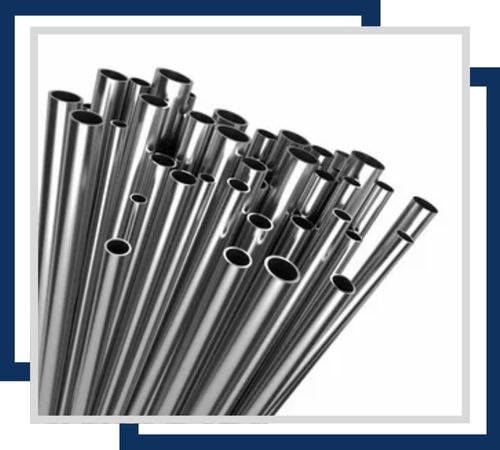

Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.

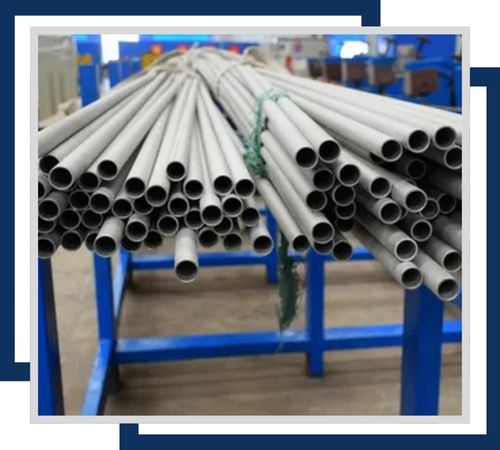

With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.

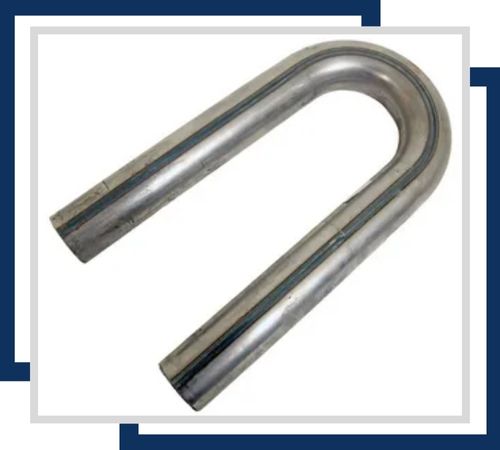

Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.

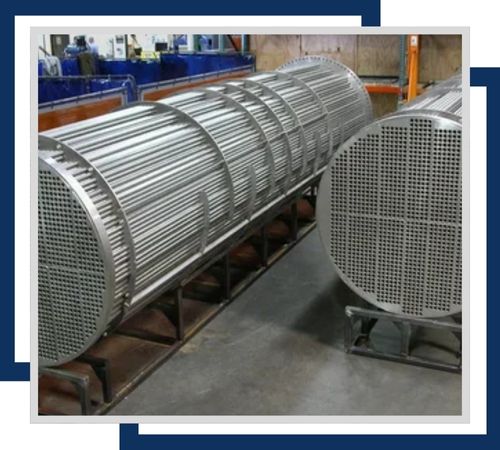

Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.

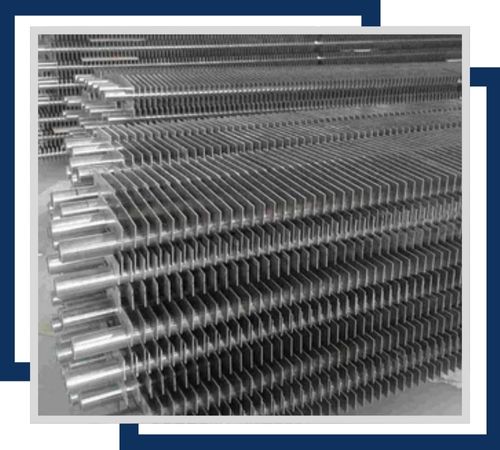

With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
Stainless Steel 416 Tubing finds extensive use in various industries that demand durable, strong, and easily machinable tubing solutions. In the automotive sector, it’s commonly used for shafts, gears, and engine components. In the petrochemical and power generation industries, it performs well in moderately corrosive settings. Additionally, in general engineering and machinery manufacturing, it’s favored for parts that require precision machining and wear resistance. You’ll also find it in pump shafts, valves, and other mechanical equipment. With its perfect blend of machinability, strength, and corrosion resistance, Stainless Steel 416 Tubing is a smart choice for a wide range of industrial applications.
