Khaleed Stainless, a well-respected manufacturer and supplier based in Riyadh, Saudi Arabia, specializes in high-quality Stainless Steel 410 Pipes. These pipes are designed to offer impressive strength, durability, and versatility. As a type of martensitic stainless steel, 410 Pipes boast excellent mechanical strength along with moderate resistance to corrosion, making them a smart choice for a variety of industrial uses. They’re particularly appreciated for their ability to endure wear, abrasion, and mild corrosive environments. Commonly found in sectors like petrochemical, automotive, power generation, and general engineering, these pipes are produced to meet global standards, ensuring they perform reliably even in tough conditions.
Stainless Steel 410 Pipes are made up of chromium (11.5–13.5%), carbon (≤0.15%), manganese, silicon, phosphorus, sulfur, and a hint of nickel. This well-balanced composition gives them strength, hardness, and oxidation resistance. In terms of mechanical properties, they show a tensile strength ranging from 450 to 650 MPa, a yield strength of about 275 MPa, and an elongation of 20%. With a Brinell hardness between 170 and 200 HB, 410 Pipes offer good machinability, toughness, and wear resistance. Their martensitic structure not only enhances durability but also ensures stability under moderate heat, making them ideal for applications that require both strength and cost-effectiveness.
| Dimensions | : | ASTM, ASME and API |
|---|---|---|
| Standard | : | ASTM A312 / ASTM SA312 |
| Size | : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
| Specialized in | : | Large Diameter Size |
| Outer Diameter | : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness | : | 0.8 mm to 12.7 mm |
| Form | : | Round, Square, Rectangular, Hydraulic Etc |
| Type | : | Welded |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End |
| Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
| 410 | min. | – | – | – | – | – | – | 11.5 | – | – |
| max. | 0.75 | 1.00 | 0.040 | 0.15 | 0.030 | 1.00 | 13.5 | |||
| Tempering Temperature (0C) | Tensile Strength (MPa) | Impact Charpy V (J) | Elongation (% in 50mm) | Yield Strength 0.2% Proof (MPa) | Hardness Brinell (HB) |
| Annealed * | 480 min | – | 16 min | 275 min | – |
| 204 | 1310 | 30 | 16 | 1000 | 388 |
| 316 | 1240 | 36 | 14 | 960 | 325 |
| 427 | 1405 | # | 16 | 950 | 401 |
| 538 | 985 | # | 16 | 730 | 321 |
| 593 | 870 | 39 | 20 | 675 | 255 |
| 650 | 755 | 80 | 23 | 575 | 225 |
Contact us to get a quick quote for your requirement.
We ensures rigorous testing of all stainless steel 410 pipes, including mechanical, chemical and design analysis. Each batch is certified with mill test certificates (MTC), which confirm compliance with international standards such as ASTM, ASME and ISO, and ensure reliability and quality in all products.

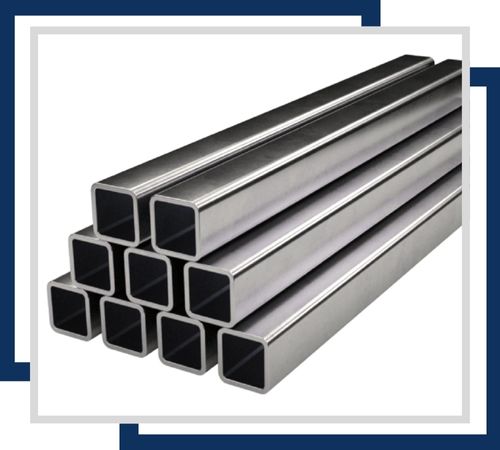

Stainless Steel 410 square pipes offer moderate corrosion resistance and are commonly used in structural applications. They come in various sizes, typically from 20 mm to 100 mm in width and height. They are known for their good machinability and resistance to oxidation.

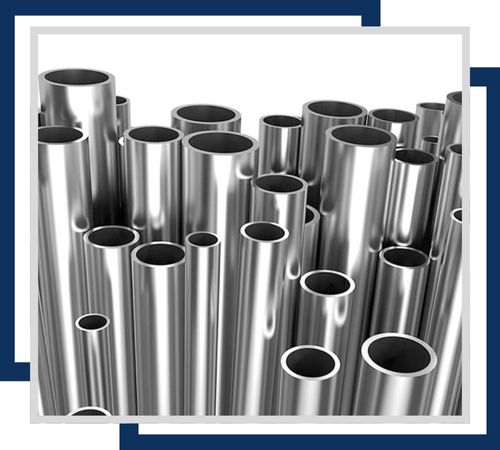

SS 410 Seamless Pipes have moderate corrosion resistance and are ideal for high-stress applications. They are available in sizes ranging from 1/8 inch to 12 inches in diameter. The absence of welded seams provides better strength and reliability in critical environments.

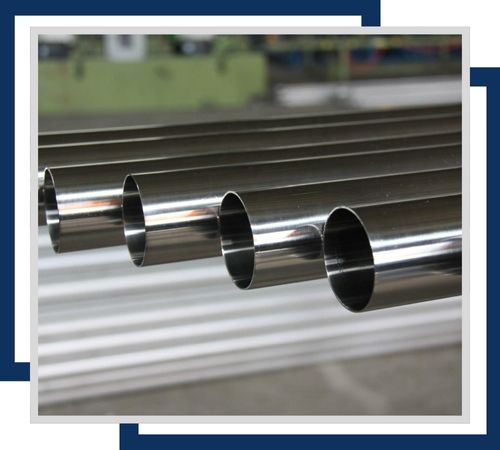

Stainless Steel 410 ERW (Electric Resistance Welded) Pipes feature moderate corrosion resistance and are used in various applications, including construction and industrial. They typically range from 1/2 inch to 24 inches in diameter and offer good weldability and strength.

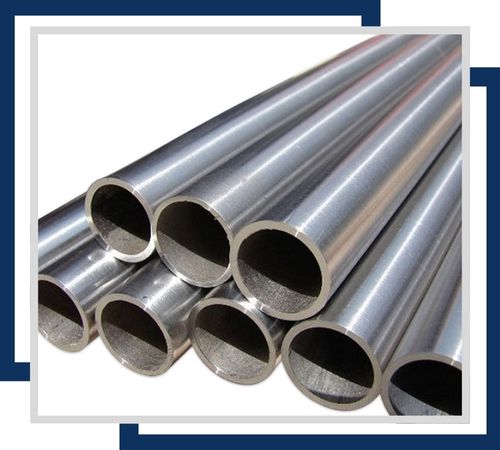

SS 410 LSAW (Longitudinal Submerged Arc Welded) Pipes exhibit moderate corrosion resistance and are used for high-pressure applications. They are available in sizes ranging from 8 to 60 inches in diameter, offering enhanced strength and durability due to the welding process.

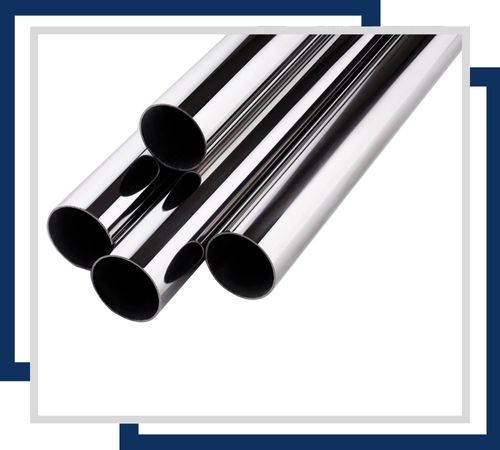

Stainless Steel 410 Round Pipes offer moderate corrosion resistance and are widely used in structural and industrial applications. They are available in diameters ranging from 1/8 inch to 12 inches, providing versatility and strength for various uses.
Stainless Steel 410 Welded Pipes have moderate corrosion resistance and are used in various industries. They are available in sizes from 1/2 inch to 24 inches in diameter. The welding process provides good strength and durability, making them suitable for various applications.
Stainless Steel 410 Pipes find extensive use in automotive exhaust systems, refinery equipment, and thermal power plants, thanks to their strength and resistance to oxidation. They’re also utilized in the production of pumps, valves, and turbine components within the petrochemical industry. In construction and engineering, these pipes serve as structural piping, heat exchangers, and parts for industrial machinery. Their wear resistance makes them a great fit for applications in mining, oil & gas, and steam systems. Overall, 410 Pipes are a dependable choice for industries that prioritize strength, durability, and affordability.
