Khaleed Stainless is a reputable manufacturer and supplier based in Riyadh, Saudi Arabia, specializing in high-quality Stainless Steel 409 Sheets and Plates. These products are crafted for durability, performance, and cost-effectiveness. As a ferritic stainless steel, SS 409 is known for its impressive resistance to oxidation, heat, and corrosion, especially in mildly aggressive environments. While aesthetics may not be the main focus, these sheets and plates are essential where strength, longevity, and affordability matter most. With meticulous manufacturing standards, Khaleed Stainless guarantees that its 409 Sheets and Plates cater to the varied needs of the automotive, exhaust systems, construction, and industrial sectors.
Stainless Steel 409 Sheets and Plates mainly consist of chromium (10.5–11.75%), carbon (≤0.08%), manganese, silicon, phosphorus, sulfur, and small amounts of titanium for stabilization. This blend boosts their corrosion resistance and oxidation tolerance at high temperatures. In terms of mechanical properties, SS 409 showcases a tensile strength of about 380–450 MPa, a yield strength ranging from 170–240 MPa, and an elongation of 20%. With a Brinell hardness of roughly 170 HB, they provide moderate toughness, good weldability, and thermal stability, making them ideal for heat-intensive and structurally demanding industrial applications.
Specifications< ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Element | Content |
|---|---|
| Carbon | 0.08 maximum |
| Manganese | 1.00 maximum |
| Phosphorus, maximum | 0.045 maximum |
| Sulfur, maximum | 0.045 maximum |
| Silicon | 1.00 maximum |
| Nickel | 0.5 |
| Chromium | 11.75 |
| Molybdenum | – |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 409 | 0.030 max | 0.5 max | 1 max | – | 0.020 max | 1 max | 0.040 max | 10.5 – 11.7 | 6*(%C+%N |
Contact us to get a quick quote for your requirement.

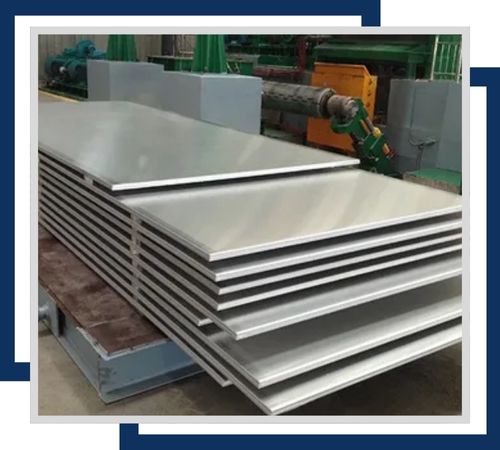

Stainless Steel 409 Hot Rolled Sheet and Plates provide good oxidation resistance and strength. These are applied in automotive exhaust systems, heat exchangers, and many more high-temperature applications that require durability.

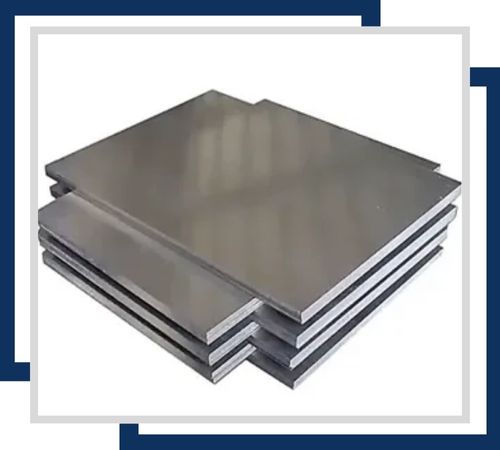

Stainless Steel 409 Cold Rolled Sheet and Plates are available with a smooth, precise finish, which provides enhanced mechanical properties, applied in automobile parts, industrial applications, and structural components that require a clean, flat surface.

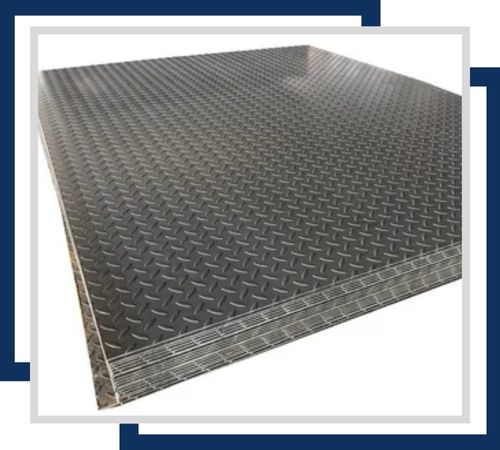

Stainless Steel 409 Chequered Sheet and Plates are applied where slip resistance and durability is required, including flooring and stair treads. It combines the strength with the corrosion resistance so it can be applied in either industrial or commercial applications.

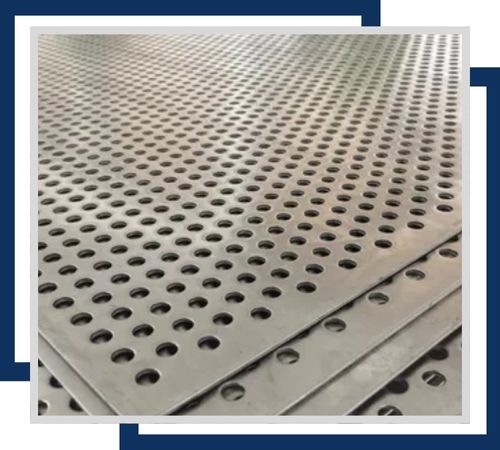

Stainless Steel 409 Perforated Sheet and Plates are used in filtration, ventilation, and aesthetic applications. They are strong and resistant to corrosion, with functional perforations that allow for the design of various custom and structural applications in high-temperature conditions.

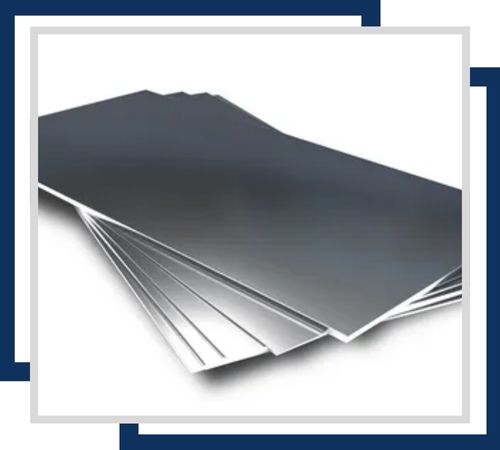

Stainless Steel 409 Shim Sheet and Plates can ensure the accuracy and rigidity to the machinery and structural parts. Owing to its properties of resistance to high temperature and corrosion, it is widely used in automobile and industrial applications where such accurate distance and alignment are a must.

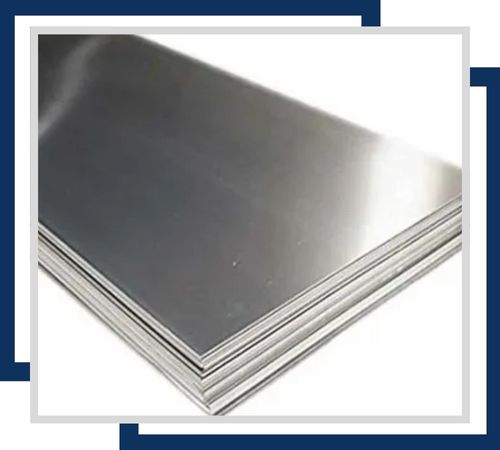

The stainless steel 409 polished sheet and plates feature a bright, shiny surface suitable for decorative and architectural purposes. They exhibit good resistance to oxidation and corrosion and can be used for aesthetic as well as functional purposes in any environment.
Khaleed Stainless assures the best experience for customers by providing detailed documentation of our Stainless Steel 409 Sheets and Plates. We deliver the following crucial documents: Commercial Invoice, Packing List, Fumigation Certificate, Heat Treatment Chart, Quality Assurance Plan, and NABL-approved Lab Test Report. These documents authenticate the genuineness but at the same time highlight the better quality of our products that instill confidence and trust among our esteemed customers. Furthermore, we provide Stainless Steel 409 Sheets and Plates with test certificates like MTC in accordance with EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. Those certify our customer centric focus coupled with an unstoppable insistence on perfection on our products.
Stainless Steel 409 Sheets and Plates find extensive application in the automotive sector, particularly for exhaust systems, catalytic converters, and mufflers, thanks to their heat resistance and cost-effectiveness. In construction and infrastructure, they are utilized for roofing, cladding, and structural components. The power generation and petrochemical industries use them in heat exchangers, ducting, and thermal equipment. Additionally, they are employed in agricultural machinery, gas turbine components, and furnace parts, where durability and oxidation resistance at high temperatures are crucial. SS 409 is highly regarded for its strength and reliability.
