Khaleed Stainless is a top stainless steel producer and distributor in Riyadh, Saudi Arabia, with specialty in stainless steel plates and sheets of high quality. Renowned for its reliability and excellence, the company produces Stainless Steel 347 and 347H, which are renowned for their high-temperature oxidation and corrosion resistance. Serving markets including petrochemical, aerospace, and power generation, Khaleed Stainless provides products compliant with international standards and offering superb performance. By prioritizing timely delivery, customer satisfaction, and creative solutions, Khaleed Stainless remains the go-to partner in the Saudi Arabian market for stainless steel products.
Stainless Steel 347 and 347H are stabilized austenitic stainless alloys with a base composition of iron, chromium (17–19%), nickel (9–12%), and titanium (5xC to 0.60%). Trace concentrations of manganese, silicon, and carbon are also present. Stainless Steel 347 exhibits very good resistance to intergranular corrosion, whereas 347H with an increase in the carbon content has improved strength when used at high temperatures. Mechanical properties are tensile strength of up to 515 MPa, yield strength of approximately 205 MPa, and elongation of a minimum of 40%. These are suitable for stringent, high-temperature industrial applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

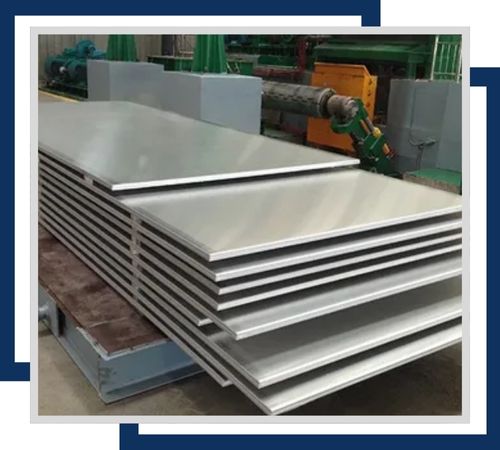

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

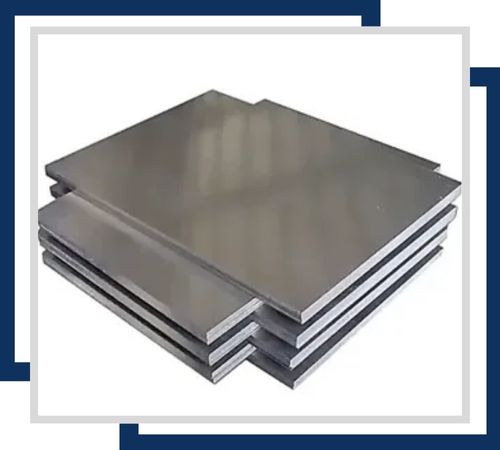

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

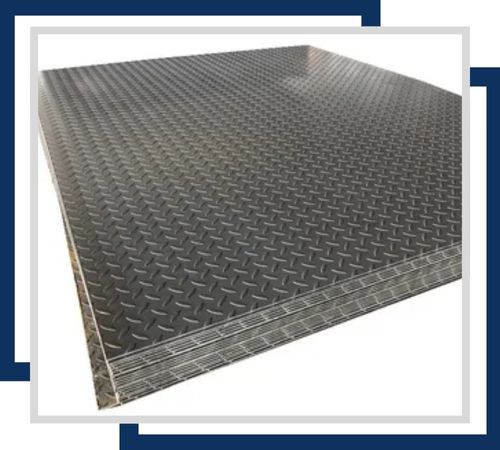

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

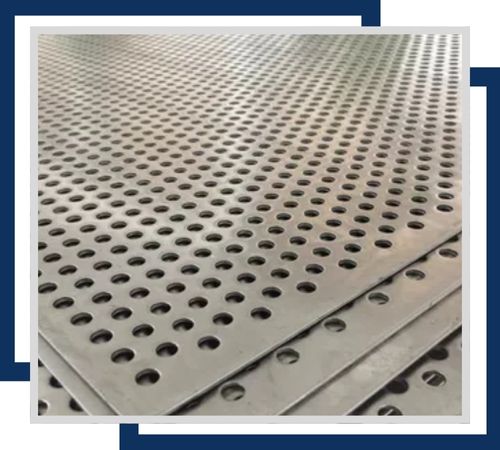

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

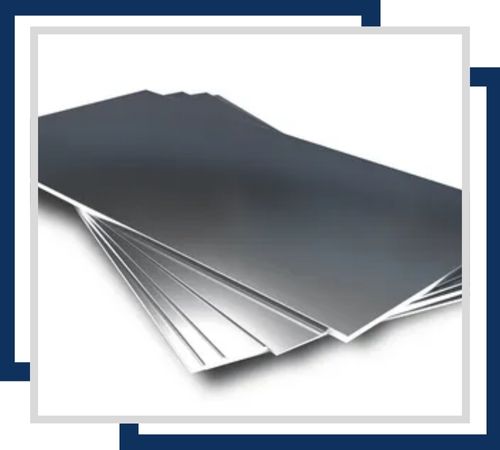

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

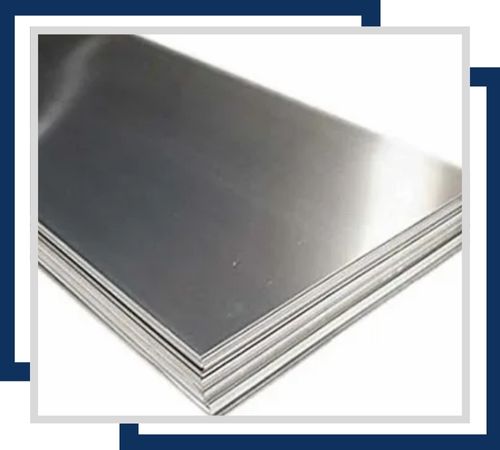

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Khaleed Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Stainless Steel 347 and 347H sheets and plates find extensive application in industries that demand high performance under corrosive and high-temperature conditions. They find extensive use in the petrochemical, aviation, and power industries for the production of heat exchangers, reactors, furnaces, and exhaust systems. Besides, due to their outstanding intergranular corrosion resistance, they find applications in chemical processing equipment, pharmaceutical equipment, and food processing equipment. They are used where high strength, long-term reliability, and endurance are required, which provide maximum performance even in severe and hostile environments.
