Khaleed Stainless stands out as a top manufacturer and supplier of Stainless Steel 321H Tubing in Riyadh, Saudi Arabia. They provide high-quality tubing solutions that are built to last, resist corrosion, and perform exceptionally well at high temperatures. Using cutting-edge technology and following global standards, these tubes are well-known for their impressive resistance to intergranular corrosion, oxidation, and scaling. Stainless Steel 321H Tubing finds its place in various industries, including petrochemical, power generation, oil and gas, and heat treatment, where strength and stability at elevated temperatures are essential. Khaleed Stainless is committed to delivering consistent quality, long-lasting service, and dependable performance for even the most demanding industrial applications.
The composition of Stainless Steel 321H Tubing includes chromium and nickel, with titanium added for stabilization and a higher carbon content compared to standard 321. This unique blend enhances its creep strength at high temperatures. With a tensile strength ranging from 515–750 MPa, it boasts excellent yield strength and good elongation, ensuring both toughness and ductility. The titanium stabilization helps prevent carbide precipitation during welding, which in turn improves resistance to intergranular corrosion. The increased carbon content also enhances high-temperature strength, making it particularly suitable for extended use in thermal and oxidative environments.
Standard ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
Dimensions ASTM, ASME and API
Range 1/2″ NB TO 24″ NB IN SCH 5, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160 & XXS as Per NACE MR 01 75
Thickness 0.3mm – 50 mm
Outer Diameter 6.00 mm OD up to 914.4 mm OD
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Type Seamless / ERW / Welded/ Fabricated
Form Round, Square, Rectangular, Hydraulic, etc.
Length Single Random, Double Random & Cut Length
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Element | Grade 904L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 321H tubing through rigorous testing and certification processes. Each tube undergoes a thorough evaluation, including hydrostability, chemical testing and mechanical testing. Certified to international standards such as ASTM and ASME, these containers provide reliability, durability and high performance in demanding industrial applications.

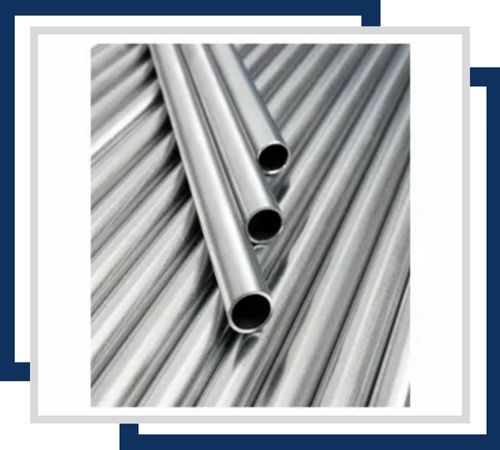

This tubing is available in sizes ranging from 1/8″ to 24″ in outer diameter. It offers excellent corrosion resistance, especially against intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 427-816°C. Ideal for high-temperature applications requiring a continuous, strong, and uniform surface.
Available in dimensions from 1/8″ to 36″ in outer diameter, this tubing is known for its high resistance to stress and pitting corrosion. It’s frequently used in chemical processing and other high-temperature applications due to its robust performance under harsh conditions. The welding process ensures a strong, durable, and leak-proof seam
These tubes come in sizes from 1/4″ to 1″ in outer diameter, designed for excellent thermal conductivity and corrosion resistance. Ideal for high-temperature and high-pressure environments, they are used in industries such as petrochemical and power generation. Their composition resists scaling and oxidation even at elevated temperatures.

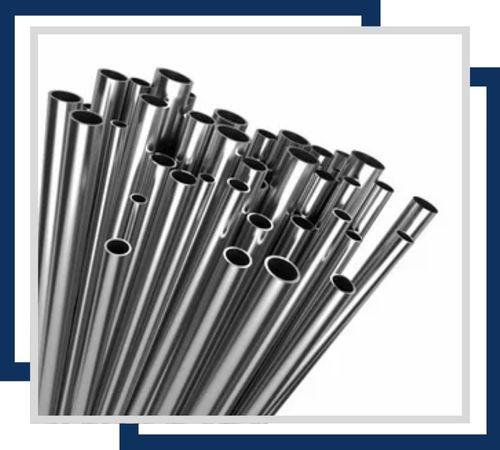

Offered in sizes from 1/8″ to 2″ in outer diameter, this tubing provides superior resistance to corrosion and high temperatures. It is used in precision instrumentation and control systems, ensuring reliable performance and accurate measurements. The tubing’s stability at high temperatures ensures minimal expansion and contraction.

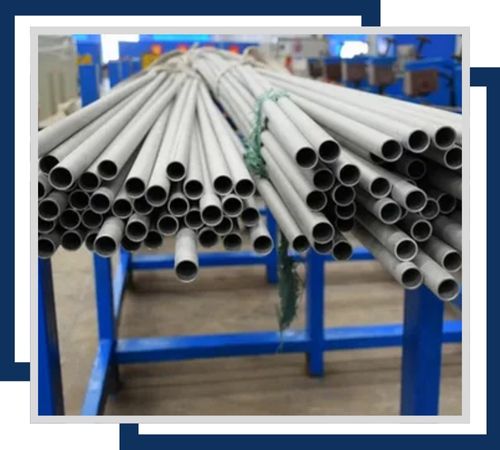

These tubes, ranging from 1/2″ to 5″ in outer diameter, are designed to withstand high-pressure and high-temperature environments typical in boiler systems. They offer excellent corrosion resistance, especially against steam and hot gases. Their durability ensures long service life and reliability in energy and industrial applications.

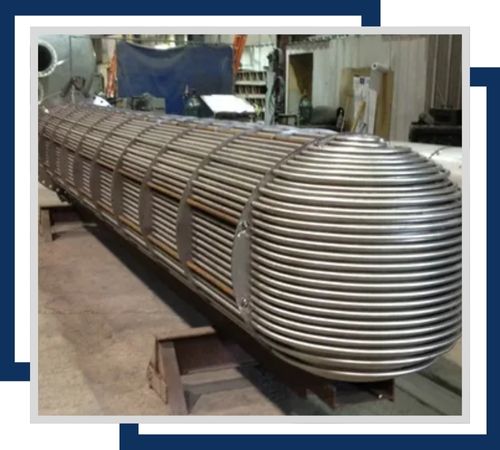

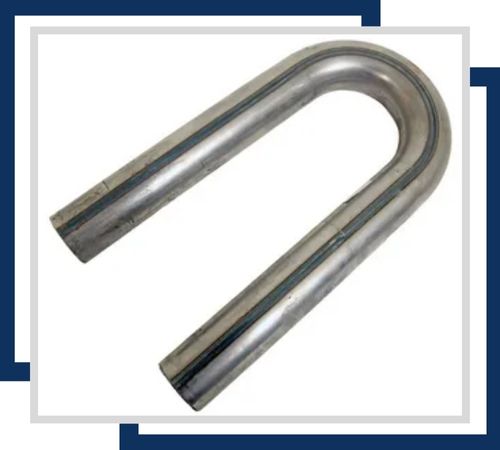

Available in sizes from 1/4″ to 1″ in outer diameter, U-tubes are essential for heat exchanger applications requiring a compact and efficient design. They provide excellent corrosion resistance and thermal stability, making them suitable for use in petrochemical, oil refining, and power generation industries. The U-shape allows for efficient heat transfer in limited spaces.

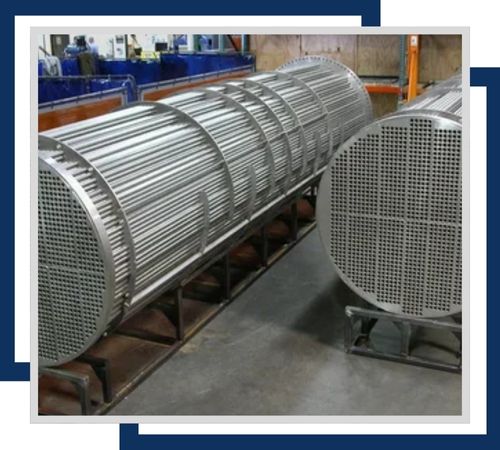

These tubes come in sizes ranging from 1/4″ to 1″ in outer diameter and are designed for use in condenser applications where efficient heat transfer and resistance to corrosion are critical. They are commonly used in power plants, HVAC systems, and refrigeration. The tubes ensure minimal fouling and scaling over prolonged use.

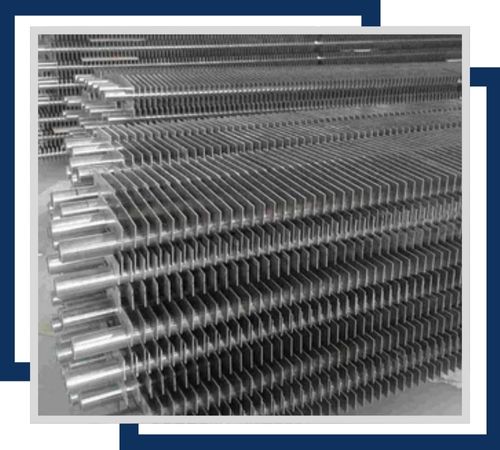

Fin tubes are available in sizes from 1/2″ to 2″ in outer diameter, designed to enhance heat transfer efficiency in various industrial applications. The addition of fins increases the surface area, improving thermal performance. These tubes offer excellent resistance to high-temperature oxidation and corrosion, making them ideal for heat exchangers and boilers.
Stainless Steel 321H Tubing is widely utilized in industries that demand reliable high-temperature tubing solutions. It’s commonly found in boilers, heat exchangers, steam piping systems, and furnace components in power generation and petrochemical plants. In the oil and gas sector, it’s essential for high-pressure, high-temperature piping systems, while in chemical processing, it stands up to aggressive conditions. Its outstanding oxidation resistance makes it a great choice for aerospace exhaust systems and heat treatment equipment. With its impressive combination of strength, thermal stability, and corrosion resistance, Stainless Steel 321H Tubing is truly a go-to solution for various industrial needs.
