Khaleed Stainless, a well-respected manufacturer and supplier based in Riyadh, Saudi Arabia, has built a solid reputation for providing top-notch stainless steel products that adhere to international standards. Among their extensive product lineup, the Stainless Steel 321 Flanges stand out for their remarkable resistance to high temperatures and intergranular corrosion. Thanks to the addition of titanium, these flanges retain their strength and structural integrity even when exposed to prolonged heat. Crafted for durability, reliability, and outstanding performance, Khaleed Stainless’s Stainless Steel 321 Flanges are a popular choice in piping systems across various industries, including chemical, petrochemical, power, and aerospace.
These flanges are primarily made up of iron, chromium (17–19%), nickel (9–12%), and titanium, which helps stabilize the alloy and prevents carbide precipitation. This specific composition boosts their resistance to oxidation and scaling at temperatures reaching up to 870°C. On the mechanical side, they boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of roughly 40%, ensuring they are tough, creep-resistant, and durable. Their ability to maintain mechanical properties even at elevated temperatures makes them perfect for heavy-duty and high-stress applications.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 321 Flanges Khaleed Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Khaleed Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

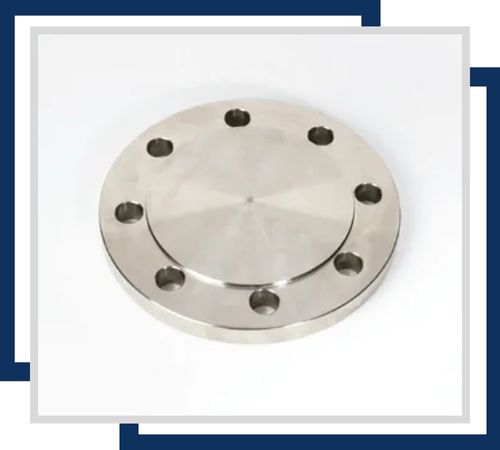

SS 321 blind flanges are used to seal the end of a piping system. Crafted from stainless steel, they provide a robust, corrosion-resistant solution for maintaining system integrity and pressure.
SS 321 ring type joint flanges offer a secure, leak-proof seal in high-pressure environments. Made from stainless steel, they feature a ring groove design for reliable, corrosion-resistant performance in demanding applications.
SS 321 forged flanges are crafted from stainless steel for high strength and durability. They are ideal for demanding applications, offering excellent resistance to high temperatures, corrosion, and mechanical stress.
Stainless Steel 321 Flanges are widely utilized in industries that demand strong and dependable connections within piping systems. They are particularly suited for chemical processing units, petroleum refining plants, and power generation facilities, where heat and corrosion are everyday challenges. The titanium stabilization makes them ideal for welded equipment like boilers, heat exchangers, and furnace components. Additionally, they find applications in marine, aerospace, and automotive sectors for high-temperature service. These flanges guarantee leak-proof, durable, and efficient performance in even the most demanding industrial settings.
