Khaleed Stainless, Riyadh, Saudi Arabia, is a prominent producer and distributor of high-quality stainless steel products such as precision-made bars for several industrial applications. Some of their products are Stainless Steel 317L Bars, which are renowned for their excellent corrosion resistance and strength under tough conditions. These bars are suitable for applications in chemical, petrochemical, and marine industries where durability and resistance to aggressive media are essential. Khaleed Stainless aims at providing consistent and dependable products of international quality throughout Saudi Arabia as well as the Middle East.
Stainless Steel 317L Bars are manufactured from a low-carbon austenitic stainless steel alloy with about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The carbon content is kept low in order to minimize carbide precipitation in welding, increasing resistance to intergranular corrosion. These bars generally have tensile strength of about 75 ksi, yield strength of about 30 ksi, and elongation of 35–40%. Their chemical composition is excellent in resistance to pitting, crevice corrosion, and acidic conditions and is thus very durable under aggressive conditions.
| Specification | ASTM A276, A479 / ASME SA276, SA479 |
|---|---|
| Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round Bars | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 8mm – 47mm (11/16″ to 1-3/4″) |
| Length | 1 to 6 meters, Custom Cut Length |
| Form | Round, Square, Hexagonal, Rectangular |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317L | 0.03 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317L | 595 MPa | 260 MPa | 55% | 85 | 200 | – |
Contact us to get a quick quote for your requirement.
We ensures exceptional quality through rigorous testing and certification of stainless steel 317L frames. Each bar undergoes ultrasonic, hardness and tensile strength testing to ensure it meets industry standards. Certified to ISO 9001, EN10204 3.1/3.2, and NABL-accredited laboratory reports, our products guarantee durability, corrosion resistance and reliability for critical applications

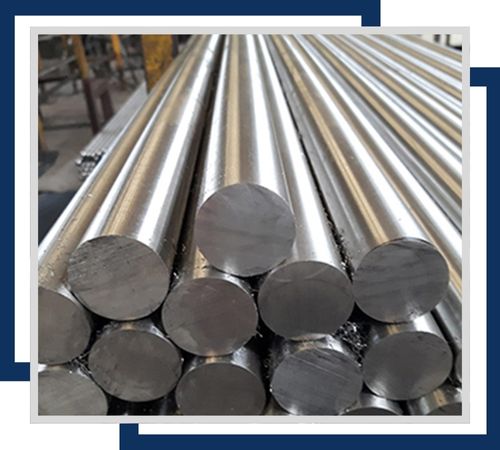

Corrosion-resistant Stainless Steel 317L Round Bars come in various diameters, typically from 6mm to 300mm. Ideal for applications requiring high strength and resistance to chloride environments, these bars are used in chemical and marine industries.

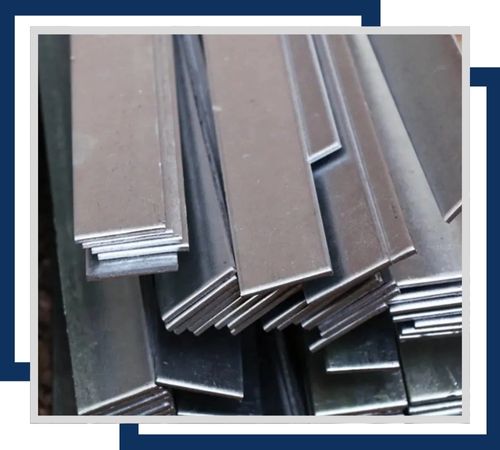

Stainless Steel 317L Flat Bars are available in thicknesses from 3mm to 50mm and widths up to 300mm. These bars offer exceptional corrosion resistance, making them suitable for structural and industrial applications, including chemical processing.

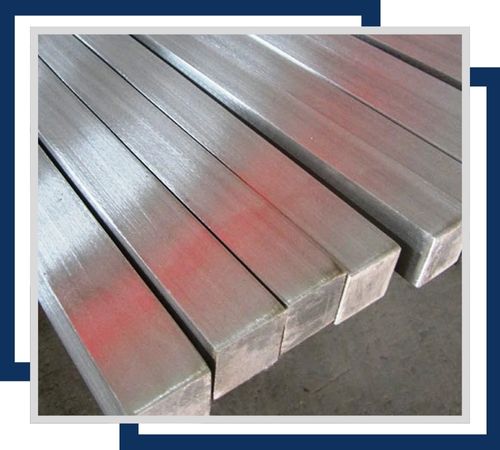

Stainless Steel 317L Square Bars are produced in sizes ranging from 10mm to 100mm. Known for their durability and resistance to aggressive environments, they are ideal for use in manufacturing and construction where strength and corrosion resistance are essential.

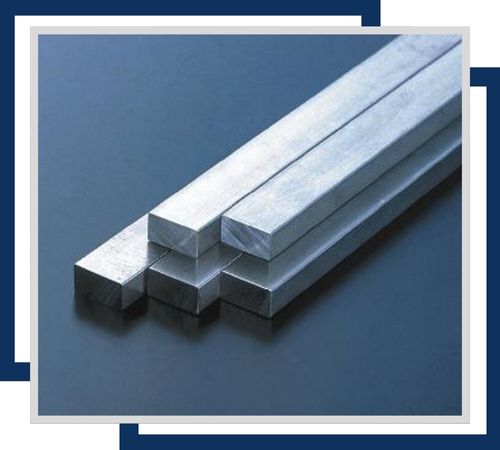

Stainless Steel 317L Rectangular Bars come in custom sizes with typical thicknesses of 5mm to 50mm and widths from 20mm to 200mm. They are used in applications where strength and resistance to harsh conditions are critical, such as in marine and chemical industries.

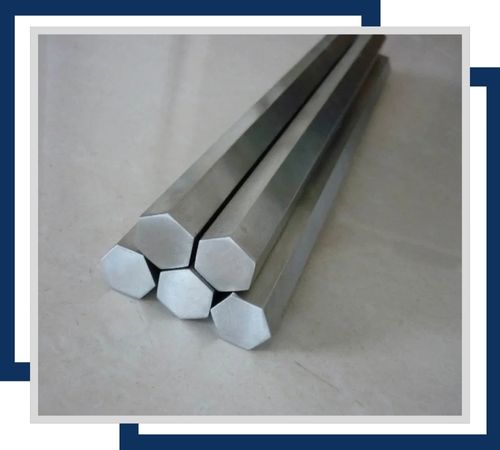

Stainless Steel 317L Hexagonal Bars are available in dimensions from 10mm to 100mm across flats. Their unique shape and corrosion resistance make them suitable for applications in high-stress environments, including aerospace and marine sectors.

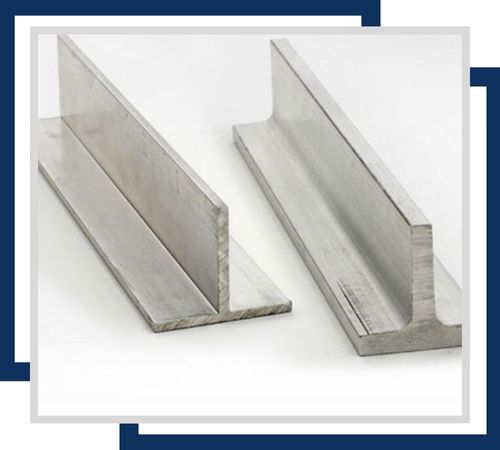

Stainless Steel 317L T-Bars are manufactured with standard dimensions, often ranging from 10mm x 10mm to 100mm x 100mm. These bars are used in structural and industrial applications where high resistance to corrosion and strength are required, such as in chemical processing plants.
Stainless Steel 317L Bars are widely applied to manufacture pumps, valves, flanges, and shafts for chemical processing, marine equipment, food processing, and pharmaceutical industries. They are suited for applications where high strength is coupled with chloride-induced corrosion resistance. The bars are also applied to structural components with severe environments, ensuring durability and reliability in critical industrial processes.
