Khaleed Stainless, a well-respected manufacturer and supplier based in Riyadh, Saudi Arabia, is celebrated for its top-notch stainless steel products that adhere to international standards. One of their standout offerings, Stainless Steel 317 Pipes, is in high demand thanks to their remarkable corrosion resistance and exceptional strength in harsh chemical environments. With a higher molybdenum content than standard stainless steels, these pipes offer impressive protection against pitting, crevice corrosion, and chemical attacks. Built for durability, ease of welding, and long-lasting performance, Khaleed Stainless’s Stainless Steel 317 Pipes are a go-to choice across various industries that need reliable solutions in tough service conditions.
These pipes are primarily made up of iron, chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which boosts their resistance to chlorides, acids, and industrial solvents. The unique chemistry of this alloy makes them stronger and more resistant to corrosion compared to the 304 and 316 grades. On the mechanical side, these pipes boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of about 40%. Their excellent toughness, stability, and resistance to stress-corrosion cracking ensure they can be relied upon in high-pressure and corrosive settings.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We ensures high quality stainless steel 317 pipe through extensive testing and certification. Our pipe involves chemical composition analysis, mechanical testing and dimensional inspection. We offer comprehensive certificates of compliance, proving that international standards are met. This provides exceptional strength, corrosion and reliability, which promises all the requirements of the industry.
Stainless 317 Square Pipes are square-shaped pipes made from 317 stainless steel, offering superior corrosion resistance, durability, and strength, making them ideal for structural and industrial applications in harsh environments.

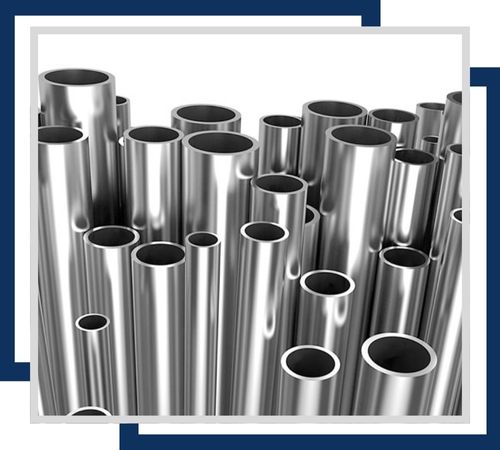

SS 317 Seamless Pipes are made from 317 stainless steel without welded seams, providing excellent corrosion resistance, strength, and durability, suitable for industrial applications and environments with high chemical exposure.

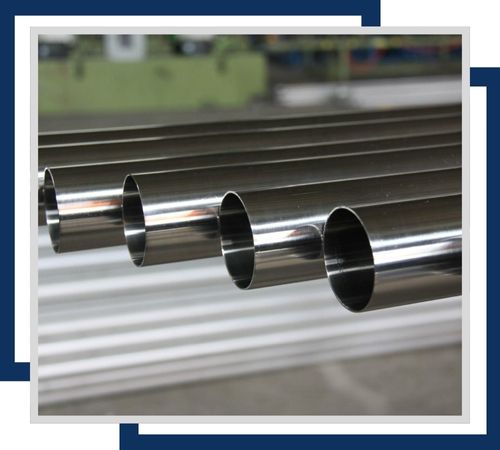

Stainless Steel 317 ERW Pipes are electric resistance welded pipes made from 317 stainless steel, offering high corrosion resistance, strength, and durability, ideal for industrial applications and environments exposed to harsh conditions.

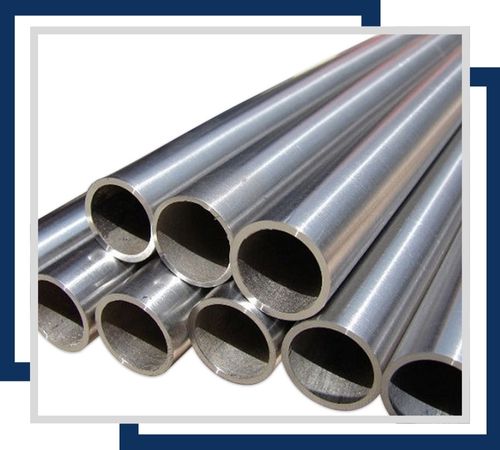

SS 317 LSAW pipe is longitudinally submerged arc welded pipes made of 317 stainless steel, which provide excellent corrosion resistance, high strength and durability for high pressure applications

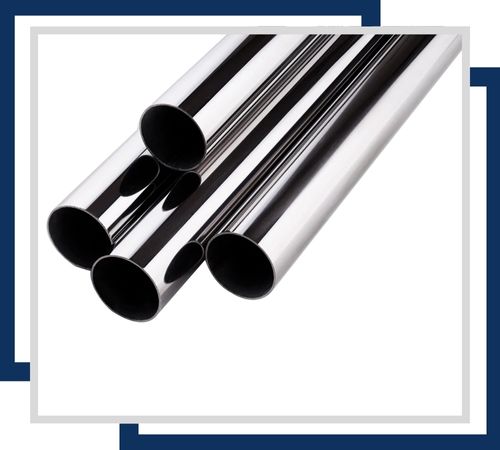

Stainless Steel 317 Round Pipes are cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.
Stainless Steel 317 Welded Pipes are pipes made from 317 stainless steel and joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes find extensive use in chemical processing industries, pulp and paper mills, textile machinery, and pharmaceutical equipment, where safeguarding against aggressive media is crucial. They are particularly well-suited for marine applications, condensers, heat exchangers, and pollution control systems due to their resilience against seawater and acidic conditions. Their outstanding weldability and durability also make them ideal for pressure vessels and structural piping. These pipes promise a long service life, cost-effectiveness, and reliability in industries that demand both strength and exceptional corrosion resistance.
