Khaleed Stainless stands out as a top-notch manufacturer and supplier based in Riyadh, Saudi Arabia, specializing in high-quality stainless steel products like **Stainless Steel 316Ti Flanges**. These flanges are well-known for their exceptional resistance to corrosion, impressive strength, and remarkable stability even at high temperatures, thanks to the addition of titanium. Crafted with meticulous attention to detail and a commitment to international standards, Stainless Steel 316Ti Flanges promise durability and reliability, making them ideal for tough environments. Khaleed Stainless prioritizes quality and performance, which is why these flanges are a go-to choice in industries such as chemical, petrochemical, marine, food processing, and pharmaceuticals, where safe and leak-proof piping connections are crucial.
The composition of Stainless Steel 316Ti Flanges includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium, along with small amounts of carbon, silicon, and manganese. The titanium not only boosts resistance to intergranular corrosion but also prevents carbide precipitation when exposed to high temperatures. On the mechanical side, they boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of nearly 40%. With their excellent toughness, hardness, and thermal stability, Stainless Steel 316Ti Flanges maintain their integrity and reliability even in harsh and corrosive conditions.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| ELEMENT | MIN | MAX |
|---|---|---|
| C | – | 0.08 |
| Si | – | 0.75 |
| Mn | – | 2 |
| P | – | 0.45 |
| S | – | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | – | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 30TI flanges of superior quality test for best products and performance at an international standards level with due testing and full specification. Being a certified supplier, we certify every batch based on traceable documents. To make the modern products with no corrosion, robust, and quality mechanical properties to give you extra value, we used the modern world’s technology at a stringent and tight quality-control measure. Khaleed Stainless commits to deliver the highest level of flanges that could ensure functionality and safety.

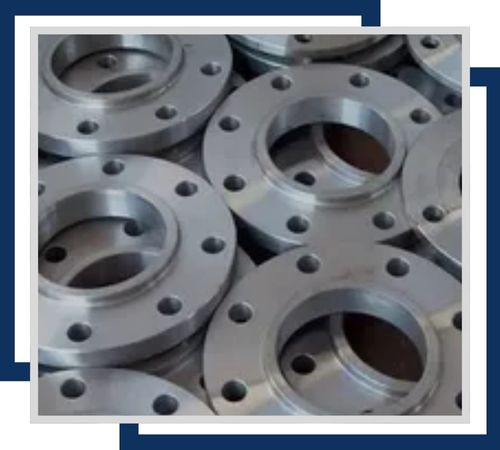

Featuring internal threads for easy attachment to pipes with matching threads, these flanges are typically available from 1/2″ to 6″. Their titanium content enhances corrosion resistance, particularly in aggressive chemical environments

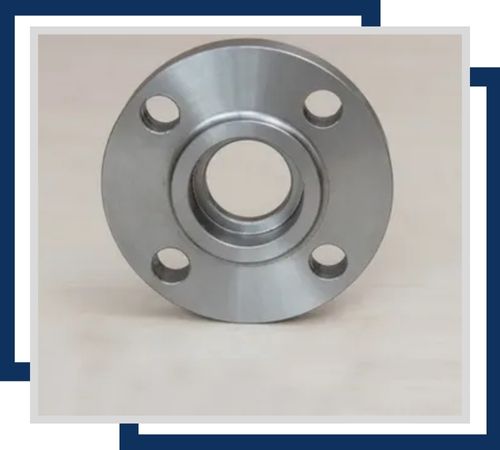

Designed for high-pressure systems, these flanges are inserted into a socket and welded in place. They come in sizes from 1″ to 24″ and offer robust corrosion resistance due to the 316Ti alloy’s resistance to oxidation and chloride stress.
These flanges are used with a loose backing flange and provide a smooth, corrosion-resistant surface for easy alignment and maintenance. They are available in sizes from 1″ to 24″ and are highly resistant to rust and corrosion, suitable for various industries.
These flanges are widely utilized in sectors that demand robust, corrosion-resistant, and temperature-stable piping components. You’ll find them in chemical processing plants, oil and gas refineries, food and beverage production facilities, and marine settings. Their titanium stabilization makes them perfect for high-temperature applications like flue gas systems, heat exchangers, and furnace components. In the pharmaceutical industry, they are trusted for maintaining hygienic and sterile conditions. Their ability to endure aggressive chemicals, chlorides, and high heat makes them essential for critical pipeline connections and sealing applications.
