Khaleed Stainless stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, specializing in high-quality stainless steel products like **Stainless Steel 316L Valves**. These valves are well-regarded for their exceptional corrosion resistance, durability, and strength, particularly in environments rich in chlorides and acids. Thanks to their low carbon content, Stainless Steel 316L Valves resist sensitization and intergranular corrosion, making them perfect for welding and high-temperature applications. With a commitment to precision and adherence to international standards, Khaleed Stainless delivers reliable and long-lasting valve solutions for various industries, including chemical, petrochemical, marine, pharmaceutical, and food processing.
The composition of Stainless Steel 316L Valves includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and very low carbon, along with small amounts of manganese, silicon, and phosphorus. This blend significantly boosts their resistance to pitting, crevice corrosion, and harsh chemicals. On the mechanical side, they boast a tensile strength of around 485–515 MPa, yield strength of 170–205 MPa, and an elongation of about 40%. With impressive toughness, hardness, and thermal stability, these valves maintain their structural integrity and reliable performance in both high and low-temperature conditions.
| 316L Stainless Steel Valves Specification | |
|---|---|
| Specifications | ASTM A276, A351, A494, A961 / ASME SA276, SA351, SA494, SA961 |
| Temperature Rating | PTFE 450F,(232C)/ Grafoil 700 F(371C) |
| End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female |
| Working Pressure | Up to 6000 PSIG, valves are also available that can handle higher pressure |
| Pressure rating | 150#,300#,600#,800#,1500# |
| Grade | C (MAX) | Si (Max) | Mn (Max) | P (Max) | S (Max) | Cr | Mo | Ni | N (Max) |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.00/18.00 | 2.00/3.00 | 10.00/15.00 | 0.10 |
| Grade | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| 316L | 170 | 485 | 30 | 50 | 217* | 95* |
Contact us to get a quick quote for your requirement.
Stainless Steel 316L valves, available in sizes from 1/4″ to 12″, offer exceptional corrosion resistance and low carbon content. Ideal for use in sensitive and high-purity applications, they ensure reliable performance.

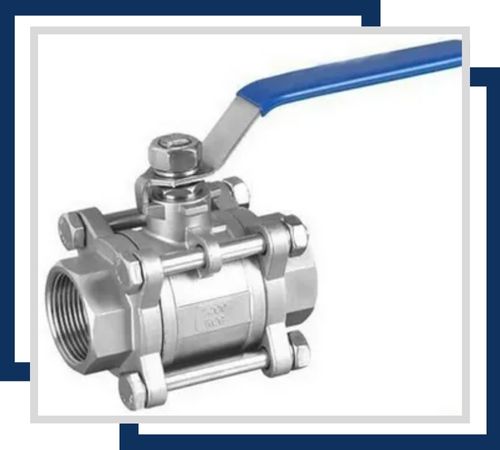

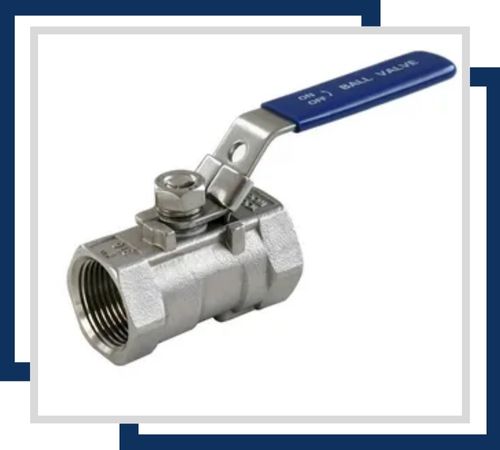

Stainless Steel 316L ball valves, ranging from 1/4″ to 6″, provide smooth, reliable flow control with superior corrosion resistance. They are suitable for handling aggressive chemicals and high-pressure environments.

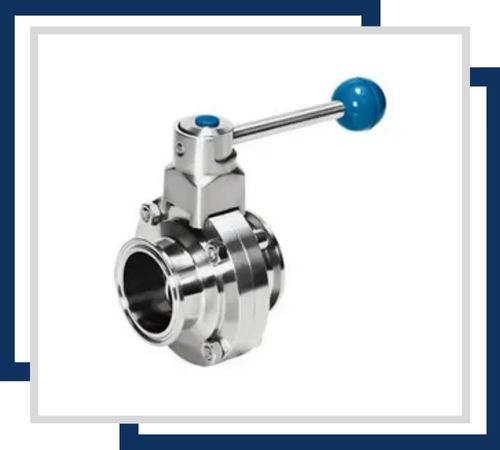

Stainless Steel 316L butterfly valves, sized from 2″ to 12″, offer efficient flow regulation with excellent corrosion resistance. Their low carbon content enhances performance in critical applications, including chemical and pharmaceutical industries.

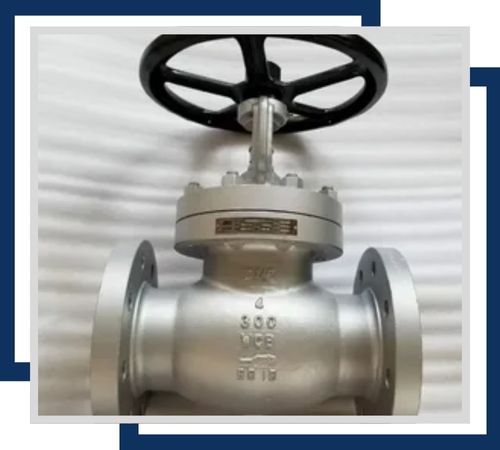

Stainless Steel 316L globe valves, available from 1″ to 12″, deliver precise flow control with high corrosion resistance. Ideal for high-purity and high-temperature applications, they ensure long-lasting durability and reliability.

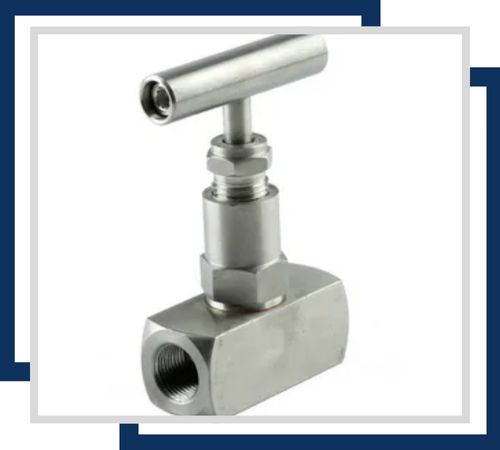

Stainless Steel 316L needle valves, sized from 1/4″ to 2″, provide precise flow adjustment and superior corrosion resistance. They are ideal for high-purity and aggressive fluid applications, ensuring accurate control.

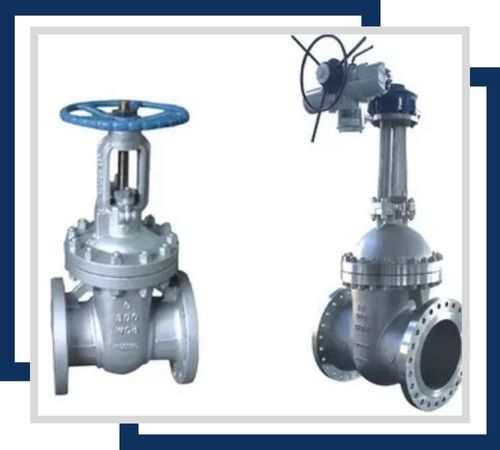

Stainless Steel 316L gate valves, ranging from 1″ to 12″, offer reliable on/off flow control with excellent corrosion resistance. Their low carbon content makes them suitable for use in high-purity and demanding industrial environments.
For total transparency and quality control, we offer a full suite of documentation in addition to our Stainless Steel 316L Valves. This includes a commercial invoice, packing list, heat treatment chart, fumigation certificate, and quality assurance plan. We also provide an NABL-approved lab test report. In addition to these, we offer an MTC as per EN 10204/3.1b, a PMI Test Certificate, a 100% radiography test report, and a Third Party Inspection Certificate to ensure the quality of our product further. Our thorough documentation demonstrates our dedication to excellence and client satisfaction.
Stainless Steel 316L Valves find extensive use in industries that demand corrosion-resistant and hygienic flow control solutions. They’re commonly found in chemical processing plants, oil and gas refineries, marine applications, and desalination systems. In the food and beverage sector, as well as the pharmaceutical industry, their sanitary and non-reactive properties make them a go-to choice for safe fluid regulation. Moreover, these valves are utilized in water treatment plants, heat exchangers, and construction projects. Their ability to endure aggressive chemicals, chloride environments, and extreme temperatures makes them essential for critical industrial valve applications.
