Khaleed Stainless stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, specializing in high-quality stainless steel products like **Stainless Steel 316L Stud Bolts**. These stud bolts are well-known for their impressive corrosion resistance, durability, and strength, especially in environments rich in chlorides and acids. Thanks to their low carbon content, Stainless Steel 316L Stud Bolts offer superior protection against sensitization and intergranular corrosion, ensuring they last a long time. Crafted with precision and a commitment to international standards, Khaleed Stainless provides reliable fastening solutions that are trusted across various industries, including chemical, petrochemical, marine, construction, and pharmaceuticals.
The composition of Stainless Steel 316L Stud Bolts includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and minimal carbon, along with small amounts of manganese, silicon, and phosphorus. This unique blend boosts their resistance to pitting, crevice corrosion, and harsh chemical conditions. On the mechanical side, they boast a tensile strength of about 485–515 MPa, yield strength of 170–205 MPa, and an elongation of roughly 40%. Their toughness, hardness, and thermal stability ensure they perform reliably in both high and low temperatures, making them ideal for critical fastening tasks.
| Grade | Stainless Steel 316L Fasteners. |
| Standard | ASTM A193 / A194, ASME SA193 / SA194, IS, BS, ANSI |
| Size | M02 to M33 |
| Length | 5 METERS |
| Grade | C | Ni | Mn | S | Cr | Si | P | Mo | N | |
| SS 316L | min. | – | 10.0 | – | – | 16.0 | – | – | 2.00 | – |
| max. | 0.08 | 14.0 | 2.00 | 0.03 | 18.0 | 0.75 | 0.045 | 3.00 | 0.10 | |
| Grade | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316L | 170 | 485 | 40% | 95 | 217 |
Contact us to get a quick quote for your requirement.

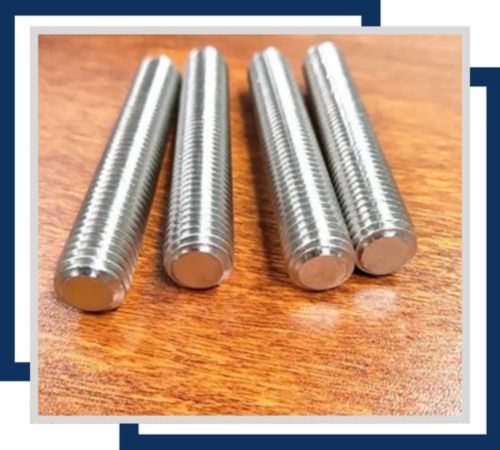

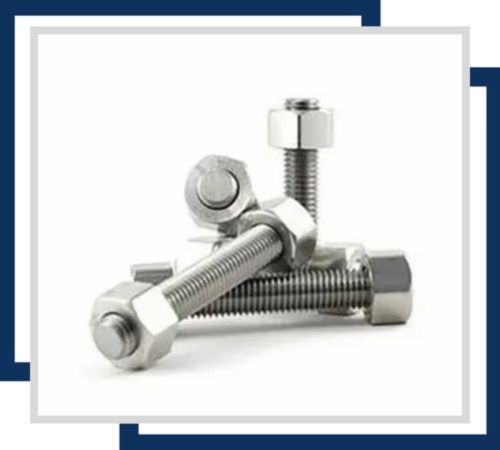

These have threads on both ends, designed for secure connections in flanges or equipment. Ideal for high-corrosion environments due to 316L’s excellent resistance.

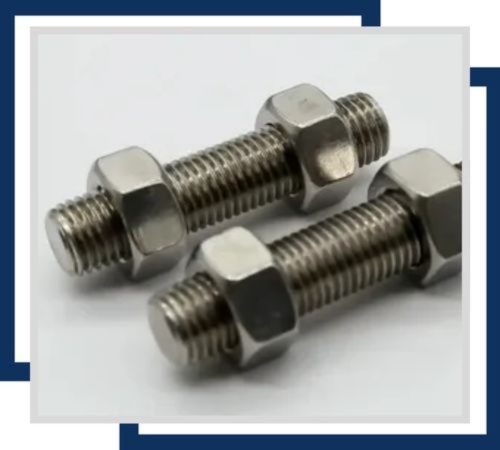

Fully threaded rods offer versatile fastening solutions in structural and mechanical applications. Known for superior corrosion resistance in marine and chemical environments.
These are high-strength fasteners with threads throughout or at both ends. Perfect for applications requiring durability and resistance to corrosion.

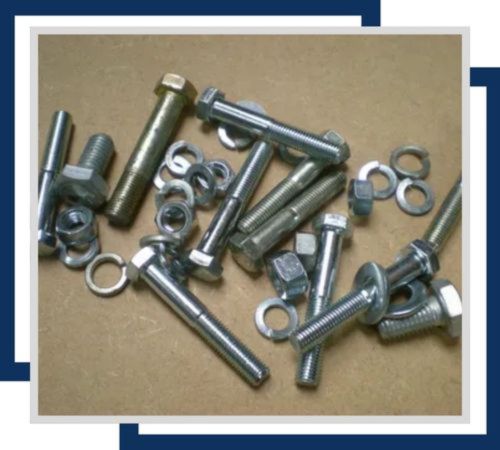

Conforming to DIN 1.4301 standards, these bolts provide precise dimensions and quality assurance. Suitable for a variety of industries requiring corrosion-resistant fasteners.
Manufactured under UNS S31600 designation, these bolts ensure high strength and excellent corrosion resistance. Ideal for chemical, petrochemical, and marine applications.

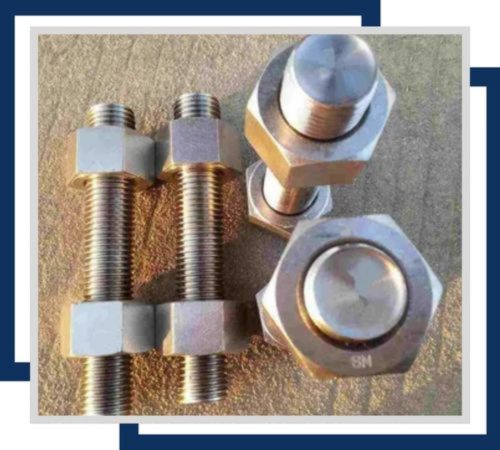

These bolts feature a flush head for smooth, low-profile applications. Designed for environments demanding both aesthetic appeal and high performance.
We have high-quality assurance of the complete transparency of our Stainless Steel 316L Stud Bolts. All the orders are provided with all the required documents such as commercial invoice, packing list, fumigation certificate, heat treatment chart, and an NABL-approved lab test report. We provide a Material Test Certificate as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third-Party Inspection Certificate. Our entire documentation is provided for the highest client satisfaction.
Stainless Steel 316L Stud Bolts are a go-to choice in industries that demand exceptional corrosion resistance and reliability. They’re frequently used in chemical processing plants, oil and gas refineries, and marine settings due to their resistance to chlorides. In the food and beverage sector, as well as in pharmaceuticals, they are favored for their hygienic and non-reactive fastening capabilities. These stud bolts also find applications in heat exchangers, water treatment facilities, and construction projects. Their ability to maintain strength and stability in challenging environments makes them essential for secure and durable connections in demanding applications.
