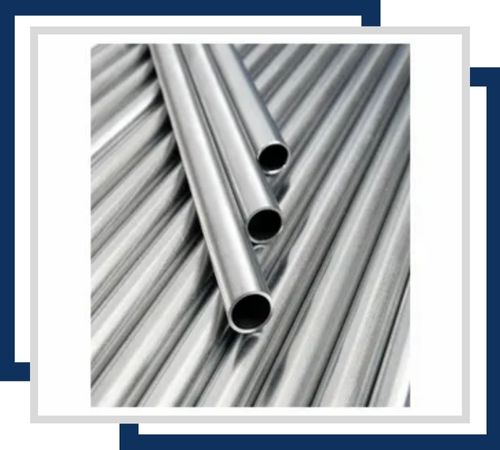

Khaleed Stainless, a reputable manufacturer and supplier located in Riyadh, Saudi Arabia, specializes in high-quality Stainless Steel 316 Tubing, perfect for industries that require outstanding corrosion resistance and strength. Made from a molybdenum-bearing austenitic stainless steel grade, SS 316 Tubing excels in marine, chemical, and high-temperature settings. Its resistance to chlorides, acids, and harsh chemicals makes it a go-to choice for critical applications. At Khaleed Stainless, we prioritize precise manufacturing, thorough quality testing, and compliance with global standards to provide tubing that merges durability, performance, and reliability for demanding engineering, industrial, and commercial needs.
Stainless Steel 316 Tubing is made up of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), carbon (≤0.08%), manganese, silicon, and trace elements. The addition of molybdenum boosts its resistance to pitting and crevice corrosion, particularly in environments rich in chlorides. It boasts a tensile strength of about 515 MPa, yield strength of 205 MPa, elongation of 40%, and a hardness of roughly 217 HB. With excellent weldability, formability, and high creep strength, SS 316 Tubing is perfect for both cryogenic and high-temperature applications. Its blend of corrosion resistance and mechanical stability guarantees long-lasting performance.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubing
| SS | 316 |
| Ni | 10 – 14 |
| N | 0.10 max |
| Cr | 16 – 18 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.045 max |
| S | 0.030 max |
| Mo | 2.00 – 3.00 |
| Grade | 316 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 |
Contact us to get a quick quote for your requirement.
We offers high quality stainless steel 316 tubing, rigorously tested for durability, corrosion resistance and accuracy. Each tube undergoes extensive testing, including mechanical and chemical analysis, to ensure it meets industry standards. Certificates of conformity (CoC) are issued, confirming that products meet all specified requirements for performance and safety.
This tubing is available in sizes ranging from 1/8″ to 12″ in diameter and is known for its excellent corrosion resistance, particularly in marine and chemical environments. The seamless construction ensures high strength and reliability.
Typically offered in sizes from 1/4″ to 8″ in diameter, this tubing is fabricated by welding stainless steel sheets. It provides good corrosion resistance, making it suitable for structural applications and chemical processing.
Designed for heat exchange applications, this tubing generally comes in sizes from 1/2″ to 2″ in diameter. It boasts superior corrosion resistance and thermal conductivity, ideal for use in heat exchangers and condensers.
Available in sizes from 1/16″ to 1″ in diameter, this tubing is used in high-pressure and precision applications. It offers excellent resistance to corrosion and is ideal for instrumentation and process control systems.
Typically found in sizes from 1″ to 5″ in diameter, these tubes are designed for high-temperature and high-pressure environments. They provide strong corrosion resistance and durability for boiler systems.
Used in heat exchangers and other applications requiring a U-shaped tube, sizes range from 1/2″ to 4″ in diameter. They offer high resistance to corrosion and are designed for effective thermal performance.
This type comes in sizes from 1/2″ to 2″ in diameter and is used in condensers for its excellent corrosion resistance and durability in cooling applications. Ideal for heat transfer and cooling systems.
Typically available in diameters from 1/2″ to 2″, these tubes have fins attached to enhance heat transfer efficiency. They are highly resistant to corrosion and are used in heat exchangers and other cooling systems.
Stainless Steel 316 Tubing finds extensive use in marine equipment, chemical processing facilities, food and beverage production, and the pharmaceutical sector, thanks to its exceptional corrosion resistance. It’s ideal for heat exchangers, condensers, pressure vessels, and fluid transport systems in challenging environments. This tubing is also utilized in architectural designs, medical devices, and oil and gas processing due to its ability to endure extreme temperatures and corrosive substances. Its strength, durability, and hygienic qualities make SS 316 Tubing a valuable choice across various applications.
