Khaleed Stainless has built a solid reputation as a reliable manufacturer and supplier based in Riyadh, Saudi Arabia. They specialize in high-quality Stainless Steel 316/316L Sheets and Plates, which are well-known for their exceptional corrosion resistance, durability, and strength. These materials find extensive application in industries like chemical processing, marine, pharmaceuticals, food, and oil & gas, where dependability in tough environments is a must. Thanks to their excellent weldability, formability, and resistance to pitting and crevice corrosion, the Stainless Steel 316/316L Sheets and Plates comply with international standards, ensuring they provide a long service life and consistent performance even in demanding situations.
The composition of Stainless Steel 316/316L Sheets and Plates primarily includes iron, chromium (16–18%), nickel (10–14%), and molybdenum (2–3%). The molybdenum content significantly boosts resistance to chlorides and corrosive chemicals. Notably, 316L has a lower carbon content compared to 316, which enhances its resistance to sensitization and intergranular corrosion during welding. In terms of mechanical properties, these sheets and plates offer a tensile strength of around 515 MPa, a yield strength of 205 MPa, and good elongation, ensuring they remain tough, durable, and reliable under both mechanical and thermal stress.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

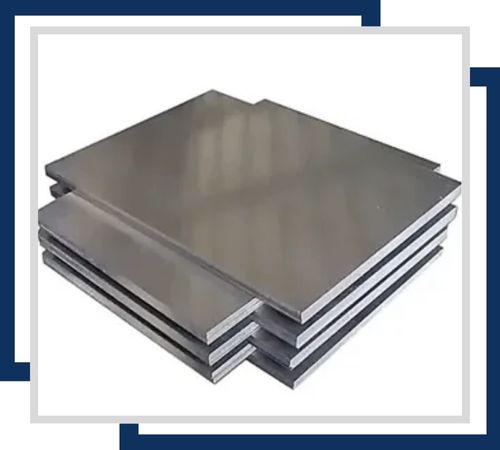

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

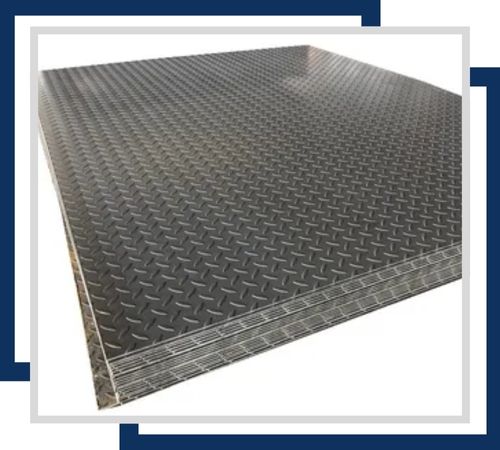

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.
Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.
Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.
Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Khaleed Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
You’ll find Stainless Steel 316/316L Sheets and Plates commonly used in marine settings, heat exchangers, chemical storage tanks, food processing equipment, and pharmaceutical machinery. Their ability to withstand acidic solutions, chloride-rich environments, and high-temperature oxidation makes them perfect for critical and corrosive service conditions. With outstanding mechanical properties, thermal stability, and corrosion resistance, these sheets and plates promise dependable and long-lasting performance across a variety of industrial sectors.
