Khaleed Stainless is a well-respected manufacturer and supplier of high-quality stainless steel products based in Riyadh, Saudi Arabia, with a focus on Stainless Steel 310H Sheets and Plates. These products are specifically designed for high-temperature and corrosive environments, crafted with care to meet international standards. Khaleed Stainless caters to a variety of industries, including petrochemical, power generation, furnace construction, and thermal processing. With cutting-edge production capabilities and a strong commitment to quality, the company guarantees consistent performance and reliability for applications that demand durability, heat resistance, and structural integrity in extreme conditions.
The Stainless Steel 310H Sheets and Plates from Khaleed Stainless contain 24–26% chromium and 19–22% nickel, along with a higher carbon content (up to 0.10%) that boosts their strength at high temperatures and improves creep resistance. These plates are known for their excellent resistance to oxidation, carburization, and thermal cycling, even at temperatures reaching 1100°C. They boast mechanical properties that include a minimum tensile strength of 515 MPa and a yield strength of 205 MPa. The combination of thermal stability and corrosion resistance makes 310H a top choice for structural components that are exposed to prolonged heat and harsh chemical environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 310H, (UNS S31009) |
| Grade | Fe | Cr | Ni | Mn | Si | C | P | S |
| SS 310H | – | 26.0-24.0 | 21.0-19.0 | 2.00 | 1.00 | 0.10 | – | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | HardnessRockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

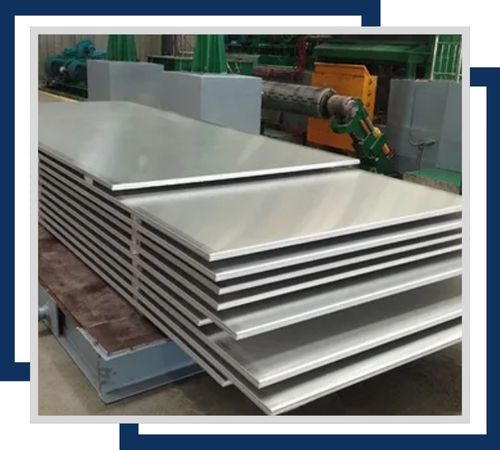

Stainless Steel 310H Hot Rolled Sheets are known for excellent high-temperature corrosion resistance. These are generally available in 2mm to 50mm thickness and widths up to 2000mm and are suitable for structural applications that require strength and durability.

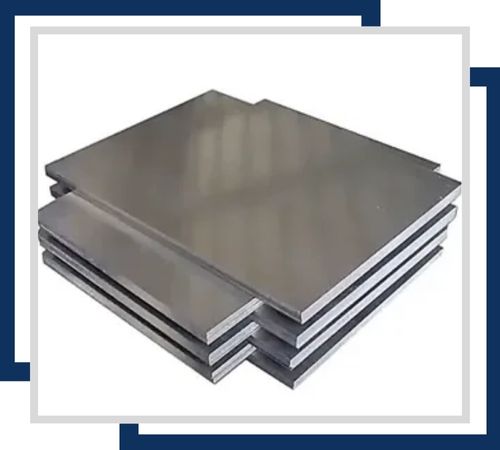

The plates are high in corrosion resistance and the surface finish is even. They come in the thickness range of 0.5mm to 6mm and 1500mm widths. They can be used in applications requiring precise dimensions and higher surface quality.

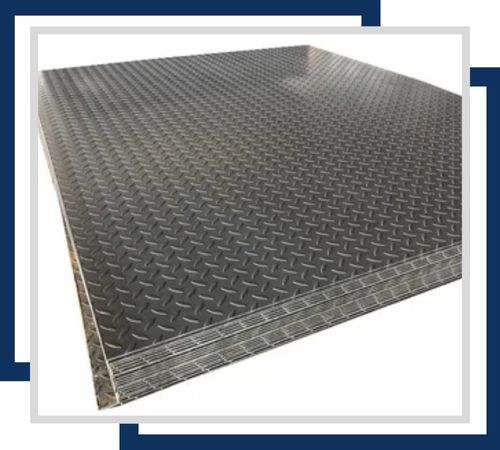

Stainless Steel 310H Chequered Plates have improved slip and high-temperature corrosion resistance. They are available in 3mm to 12mm in thickness and widths up to 1250mm. The product is excellent for flooring and high-traction applications.
Stainless Steel 310H Perforated Sheets offer high corrosion resistance with customized hole patterns for filtration and ventilation. The sheet sizes are generally available in 0.5mm to 6mm in thickness and up to 2000mm in width. It is used in industrial and architectural applications.

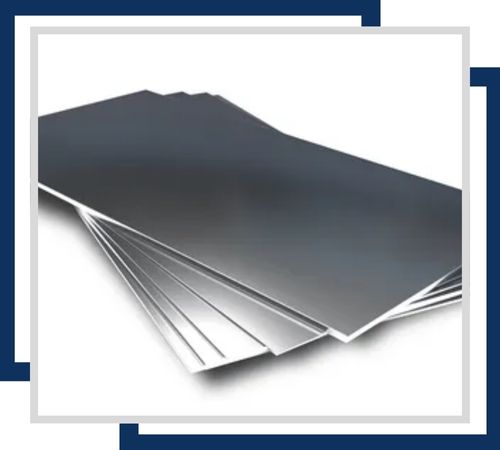

Stainless Steel 310H Shim Sheets are known for their excellent corrosion resistance at high temperatures and are used for spacing and alignment applications. The range of thickness offered is from 0.1mm to 2mm and sizes up to 1000mm x 2000mm, which offers flexibility in application.

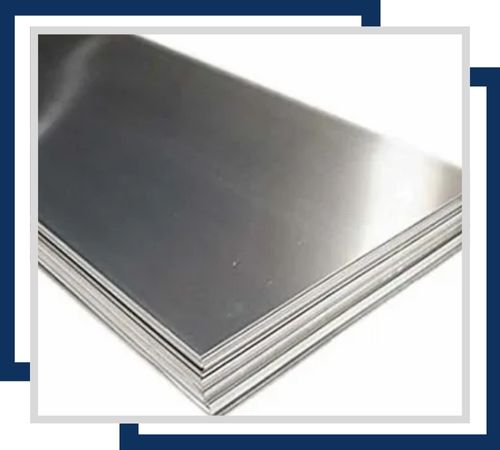

The stainless steel 310H polished plates feature high-temperature corrosion resistance with a mirror-like finish. Available in thicknesses from 1mm to 25mm and widths up to 1500mm, these plates are used in decorative and high-visibility applications where aesthetic quality is important.
Khaleed Stainless promises its customers a hassle-free experience. We offer our customers all the documents they require for the purchase of high-quality Stainless Steel 310H Sheets and Plates. We offer the following necessary documents: commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, thus making our products authentic and superior. In addition, our Stainless Steel 310H Sheets and Plates are provided with several test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Such certificates highlight the commitment towards customers’ satisfaction as well as continued efforts toward the achievement of excellence in product quality.
Khaleed Stainless’s Stainless Steel 310H Sheets and Plates are extensively utilized in industries where heat and corrosion resistance are essential. Typical applications include furnace parts, heat exchangers, kiln liners, combustion chambers, and equipment for petrochemical processing. Their ability to maintain strength at elevated temperatures makes them perfect for high-pressure and high-temperature services. Plus, their resistance to oxidation and scaling under cyclic heating conditions ensures a long service life, even in demanding industrial environments.
