Home > Stud Bolts > Stainless Steel 304L Stud Bolts
Khaleed Stainless stands out as a top-notch manufacturer and supplier of stainless steel fasteners in Riyadh, Saudi Arabia. They offer a diverse selection of precision-engineered products tailored for industrial applications. Their specialty lies in Stainless Steel 304L Stud Bolts, which are celebrated for their remarkable corrosion resistance, strength, and weldability. Crafted in line with international standards, these stud bolts are perfect for sectors like chemical processing, water treatment, food and beverage, and oil and gas. With a strong commitment to quality, durability, and customer satisfaction, Khaleed Stainless has become a trusted name for fastening solutions throughout Saudi Arabia and the broader GCC region.

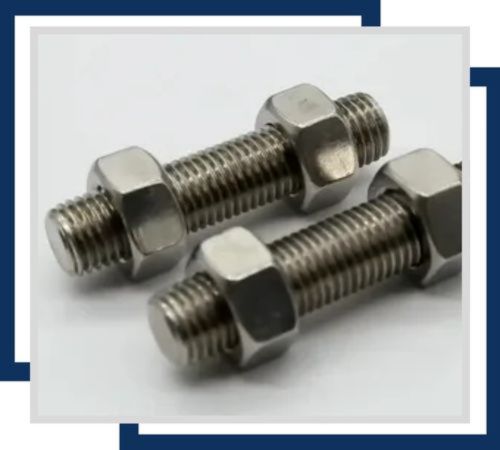

The Stainless Steel 304L Stud Bolts from Khaleed Stainless are produced using a low-carbon version of 304 stainless steel, which includes 18–20% chromium and 8–12% nickel. This lower carbon content enhances their resistance to intergranular corrosion post-welding, making them ideal for high-temperature or corrosive environments. These stud bolts boast a minimum tensile strength of 485 MPa and a yield strength of 170 MPa, along with impressive ductility and toughness. Their reliable performance and ease of fabrication make them a great choice for both structural and process-critical fastening needs.
| Specification | ASTM A 193/ASME SA 193 |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating | Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 550 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

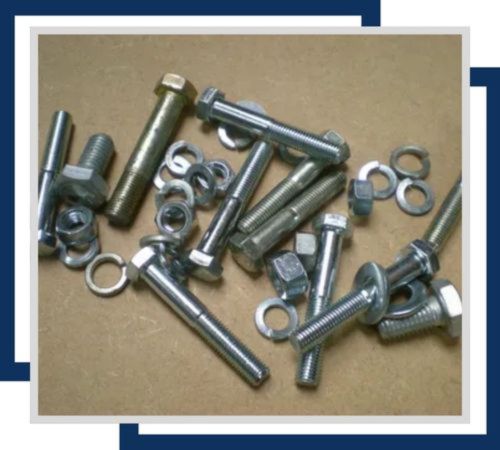

Stainless Steel DIN 1.4301 stud bolts offer exceptional strength and corrosion resistance. Designed for high-performance applications, they ensure durable and secure connections with precise threading and high-quality stainless steel.

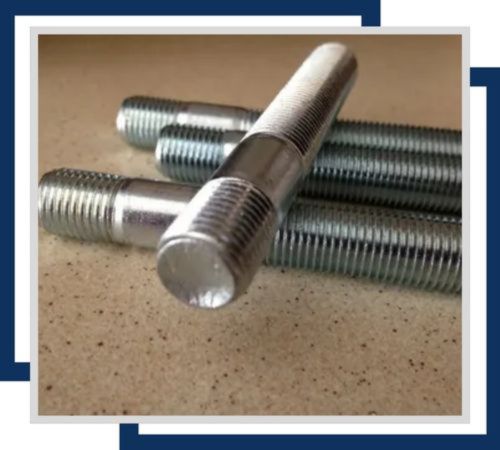

Stainless Steel UNS S30403 stud bolts provide outstanding durability and resistance to corrosion. Perfect for demanding applications, they offer secure, reliable connections with high-strength performance and precision threading.

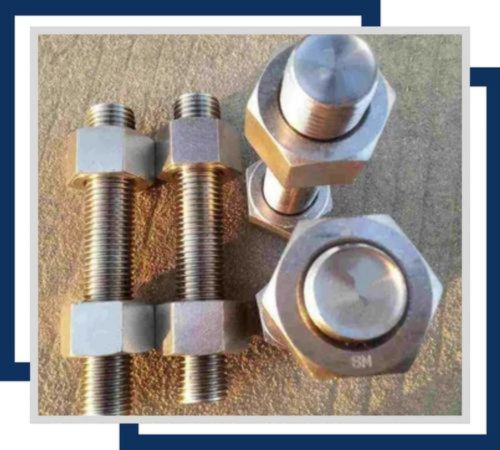

Stainless Steel 304L flush head stud bolts combine durability and sleek design, offering excellent corrosion resistance and strength. Their flush head allows for a clean, streamlined installation in tight spaces.
We assure the transparency of our Stainless Steel 304L Stud Bolts with the high quality assurance. All the orders are supplied along with relevant documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, and NABL-approved lab test report. We offer Material Test Certificates according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates. Detailed documentation is maintained in order to meet the satisfaction level of clients to the highest level.
Khaleed Stainless’s Stainless Steel 304L Stud Bolts are extensively utilized in situations that require strong, secure fastening and corrosion resistance, even in challenging environmental conditions. You’ll find them commonly used in piping systems, pressure vessels, marine equipment, and structural assemblies in humid or corrosive settings. Their excellent weldability and resistance to chemical exposure make them suitable for both indoor and outdoor applications in industries like food processing, pharmaceuticals, and oil refineries. With consistent mechanical strength and a long service life, these stud bolts ensure dependable performance across various applications.
