Khaleed Stainless is a reputable manufacturer and supplier of top-notch Stainless Steel 304H Sheets and Plates based in Riyadh, Saudi Arabia. We cater to industries that need materials known for their high strength, corrosion resistance, and ability to withstand heat. SS 304H is a high-carbon variant of 304 stainless steel, which provides enhanced strength at elevated temperatures, making it perfect for applications like pressure vessels, heat exchangers, and high-temperature structural components. Our 304H sheets and plates are meticulously crafted to meet international standards, guaranteeing exceptional quality, durability, and precise dimensions. Offered in a range of thicknesses, finishes, and custom sizes, these sheets and plates are designed for long-lasting performance in critical industrial and engineering settings.
Stainless Steel 304H is composed of roughly 18–20% chromium, 8–11% nickel, and a carbon content of 0.04–0.10%, which boosts its strength at high temperatures. It boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%, ensuring remarkable toughness. With a Brinell hardness of around 201 HB, these sheets and plates excel in oxidation resistance up to 870°C. The high carbon content enhances creep resistance, making SS 304H ideal for pressure and structural applications. It also maintains excellent weldability, machinability, and formability, ensuring reliable performance in extreme conditions.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Galvanized etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.

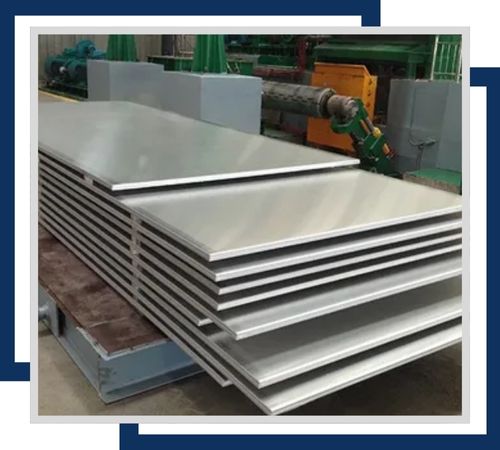

They come in dimensions ranging from 3mm up to 150mm thick, and up to 2000mm wide. Hot-rolled sheets are excellent in strength, ideal for structural applications.

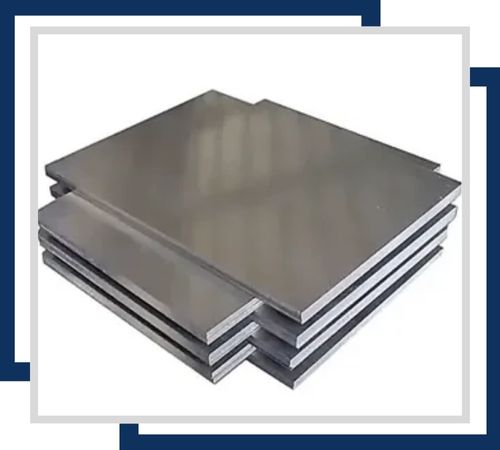

Cold-rolled sheets have a thickness of between 0.3mm to 6mm, and their widths can reach up to 1500mm. They can give a fine surface finish, as well as very accurate dimensioning, perfect for precision applications and fabrication.

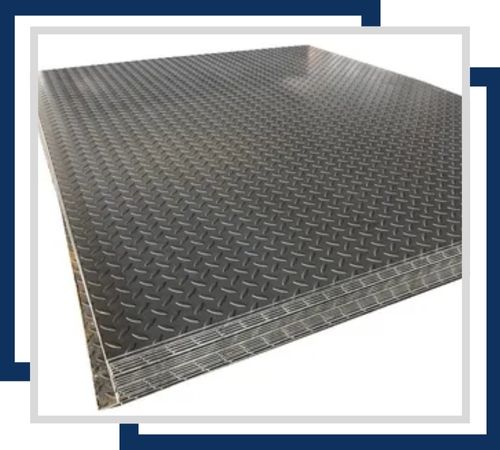

These sheets range from 1mm to 12mm in thickness. The texture on them is what gives them their anti-slip surface. They are mainly used in flooring and industrial platforms.

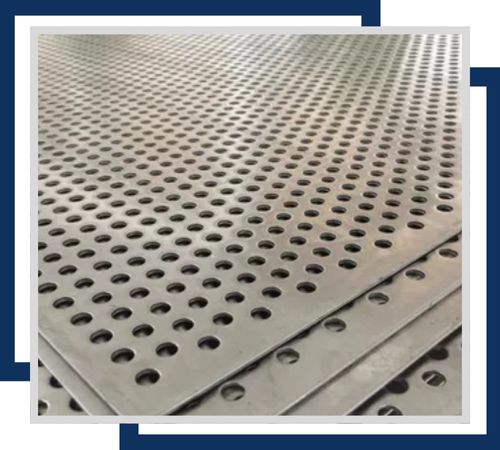

These sheets mainly range between 0.3mm and 12mm in thickness. Due to the uniform perforations, they are widely applied in applications such as filtration, ventilation, and decorative purposes.

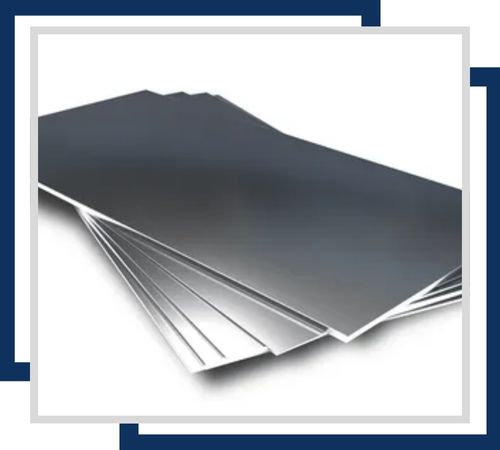

The range in thicknesses for these thin sheets varies from 0.05mm to 3mm and finds applications in precise adjustments and alignment during a machinery component or structural component.

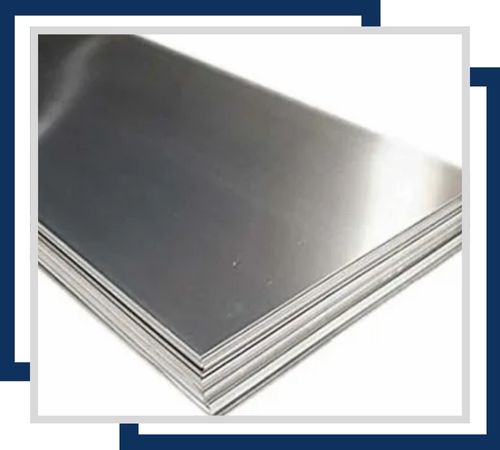

Polished sheets are available from a thickness of 0.3mm to 6mm, providing a reflective finish, and find applications in aesthetic applications and architectural designs.
Khaleed Stainless offers an excellent customer experience with strong documentation for our premium Stainless Steel 304H Sheets and Plates. The necessary documents that accompany our product are commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-accredited lab test reports. These documents prove the authenticity and exceptional quality of our products, thereby building trust and confidence among our esteemed customers. In addition, we offer a variety of test certificates with our Stainless Steel 304H Sheets and Plates, including MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These accreditations emphasize our commitment to customer satisfaction and our relentless drive for excellence in product quality.
Stainless Steel 304H Sheets and Plates find extensive use in boilers, heat exchangers, pressure vessels, furnaces, pipelines, and other components that face high temperatures. Their outstanding corrosion resistance makes them a go-to choice for industries like petrochemical, chemical processing, food processing, and pharmaceuticals. The impressive strength and toughness of SS 304H make it suitable for construction, marine applications, and heavy-duty equipment manufacturing. Engineers often choose these sheets and plates for projects that require reliability, a long service life, and resistance to harsh environments.
