Khaleed Stainless is a reliable manufacturer and supplier of top-notch Stainless Steel 304H Nuts based in Riyadh, Saudi Arabia. We provide dependable fastening solutions designed for high-temperature and high-pressure industrial applications. SS 304H is a high-carbon austenitic stainless steel known for its impressive tensile strength, outstanding corrosion resistance, and remarkable durability even in extreme conditions. Our nuts are precision-engineered to comply with international standards and come in a variety of sizes, grades, and thread types. Perfect for industries like petrochemical, power generation, chemical, and marine, these nuts guarantee secure, leak-proof connections and long-lasting performance in demanding environments where safety and reliability are paramount.
Stainless Steel 304H Nuts are composed of 18–20% chromium, 8–11% nickel, and 0.04–0.10% carbon, which boosts strength at high temperatures and enhances creep resistance. They also contain ≤2% manganese, ≤1% silicon, and trace amounts of phosphorus and sulfur. With a tensile strength of around 515 MPa, yield strength of 205 MPa, elongation of 40%, and a Brinell hardness of about 201 HB, these nuts offer exceptional mechanical stability. The high-carbon content contributes to their durability, while the austenitic structure ensures corrosion resistance, weldability, and toughness, making them ideal for high-stress industrial and structural applications.
| Specifications | DIN, ISO ,JIS ,GB, IS, BS, ASTM |
| Standard | ASTM A193 / A194, ASME SA193 / SA194 |
| Size | M2 – M100 |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions Standard | DIN: DIN931, 933, 934, 7991, 976, 125 ISO: ISO 4033, 4032 ASME B18.5, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | – | 10.5 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Nuts Designed for high-stress environments, these nuts provide excellent corrosion resistance and durability. Available in sizes ranging from M6 to M36, they are ideal for chemical, petrochemical, and power generation applications.

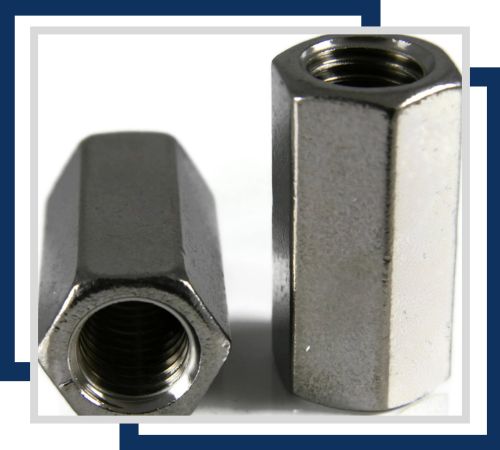

Stainless Steel 304H Coupling Nuts Ideal for joining threaded rods, these coupling nuts offer high strength and temperature resistance. Available in sizes from M6 to M36, they are suitable for industrial applications such as piping systems and machinery assemblies.

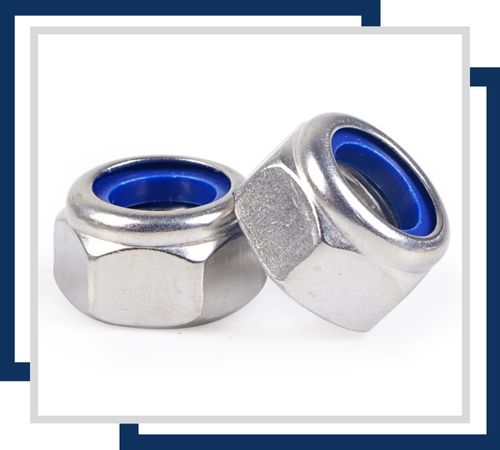

These nuts feature a nylon insert for secure fastening and vibration resistance. Available in sizes from M6 to M24, they ensure a tight fit and prevent loosening, making them perfect for machinery and automotive applications.

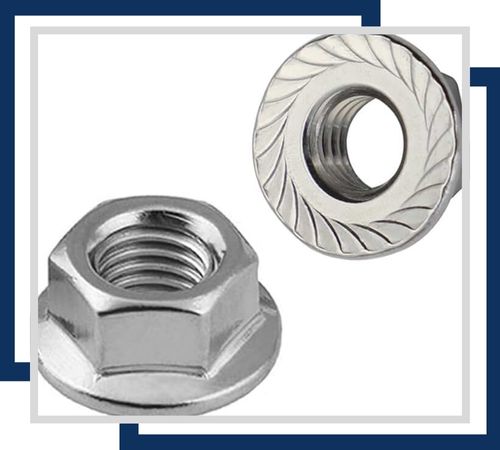

Featuring integrated flanges for extra support, these SS 304H nuts provide enhanced load distribution and stability. Available in sizes from M6 to M24, they are ideal for use in heavy-duty equipment and construction projects.

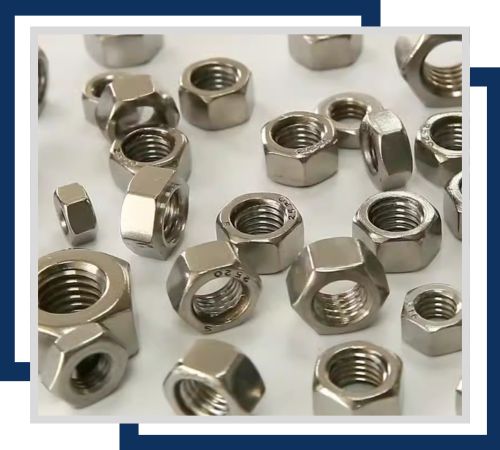

Offering superior strength for heavy-duty applications, these SS 304H nuts are designed for high-pressure and high-temperature environments. Available in sizes from M6 to M36, they are perfect for boilers and heat exchangers.
These square nuts provide a large surface area for effective torque application. Available in sizes from M6 to M24, they are ideal for secure fastening in tight spaces within industrial machinery and structural applications.
Khaleed Stainless is committed to providing high-quality Stainless Steel 304H Nuts with consistent performance through a wide range of tests. These include hardness testing, spectro analysis, PMI, and flaring tests. We also do micro and macro tests, pitting resistance tests, and IGC tests to ensure the excellent quality of every product we deliver. Along with the above-mentioned stringent testing processes, we are giving full documentation like commercial invoices and detailed packing lists with net and gross weights, box numbers, and labels. Moreover, our legalized or attested Certificate of Origin and Third-Party Inspection Certificates make sure that there is total assurance of our commitment towards delivering superlative products and a guaranty of unforgettable customer satisfaction.
Stainless Steel 304H Nuts find extensive use in boilers, heat exchangers, pressure vessels, pipelines, and industrial machinery that require secure fastening under high-temperature and high-pressure conditions. They are particularly suited for petrochemical plants, refineries, power generation facilities, chemical processing units, and marine applications. Thanks to their high strength, thermal stability, and corrosion resistance, these nuts are dependable for assembling structural components, piping systems, and critical machinery. SS 304H Nuts promise long-lasting performance and leak-proof connections, ensuring safety and reliability in demanding environments.
