Khaleed Stainless is a reputable manufacturer and supplier of Stainless Steel 301L Pipes based in Riyadh, Saudi Arabia. These pipes are specifically crafted for high-strength applications that demand exceptional corrosion resistance and great formability. Stainless Steel 301L is a low-carbon variant of SS 301, which enhances weldability and reduces the risk of carbide precipitation during the welding process. At Khaleed Stainless, we offer SS 301L pipes in a range of sizes, thicknesses, and surface finishes. Our products adhere to international quality standards and are widely available across Saudi Arabia and the Middle East for both industrial and structural uses.
Stainless Steel 301L Pipes consist of 16–18% chromium, 6–8% nickel, and a maximum of 0.03% carbon. This low-carbon makeup boosts resistance to intergranular corrosion while still providing good tensile strength (around 520–850 MPa). The alloy is highly ductile, making it perfect for applications that involve cold working and moderate forming. While SS 301L is non-magnetic in its annealed state, it can become slightly magnetic when cold worked. It also boasts good weldability and retains its strength in mild to moderate corrosive environments.
Specifications |
ASTM A240, ASME SA240 |
Dimensions |
ASTM, ASME and API |
Surface |
surface and finish of stainless steel sheets |
Type |
Ferritic Stainless Steel |
Processes |
Hot Rolled,Cold Rolled |
Thickness (mm) |
1.2~200 mm |
Width |
50~4020 mm |
Length |
50~18000 mm |
| Grade | C | Mn | Si | P | S | Cr | N | Ni |
| SS 301L | 0.03 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 16.0 – 18.0 | 0.10 max | 6.00 – 8.00 |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 301L | 515 | 205 | 40 % |
Contact us to get a quick quote for your requirement.
We offers the best quality 301L stainless steel pipes. These have undergone rigorous testing in durability, strength, and resistance. Our rigorous testing is done by the chemical composition analysis, mechanical property analysis, and dimensional verification. Appropriate certifications are included with each pipe for compliance with international standards to make it efficient and reliable for use in a variety of industrial applications.

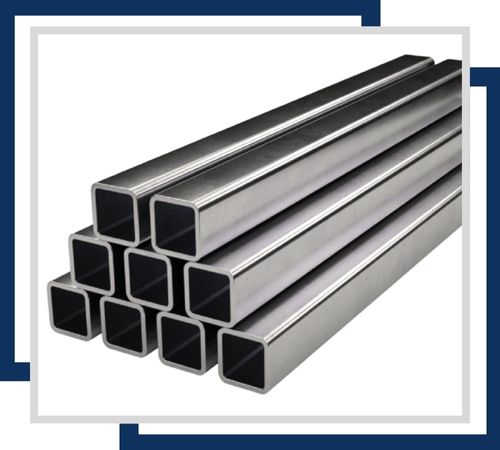

These pipes offer excellent corrosion resistance and are commonly used in structural applications. They come in various sizes, typically 20 mm to 100 mm in side length, with dimensions tailored to specific requirements.

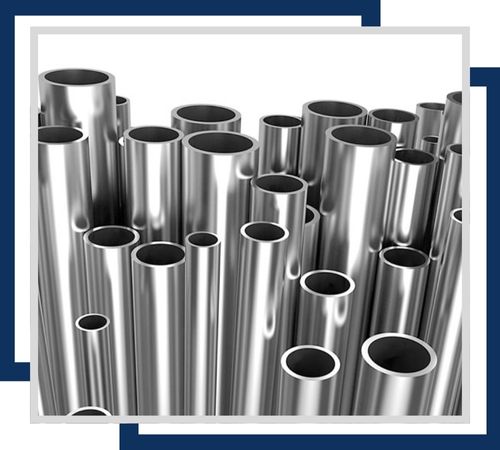

Featuring high corrosion resistance, these pipes are manufactured without weld seams. They are available in diameters ranging from 6 mm to 100 mm and lengths up to 12 meters, making them ideal for high-pressure and high-temperature applications.

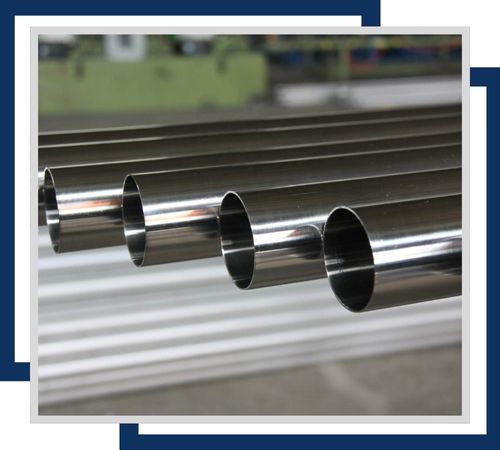

Known for their corrosion resistance and cost-effectiveness, Electric Resistance Welded (ERW) pipes are produced in sizes from 15 mm to 300 mm in diameter. They are widely used in various industries due to their strength and precision.

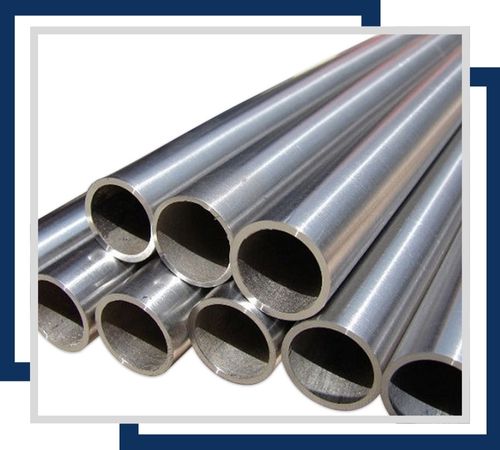

These pipes provide excellent corrosion resistance and are fabricated using the Longitudinal Submerged Arc Welding process. They are available in diameters ranging from 100 mm to 1200 mm and are used for large-scale projects and pipelines.

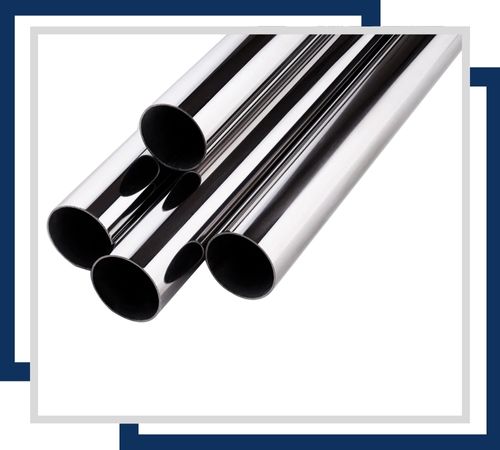

Offering strong corrosion resistance, round pipes come in 6 mm to 300 mm diameters. They are commonly used in structural, automotive, and industrial applications due to their versatility and durability.

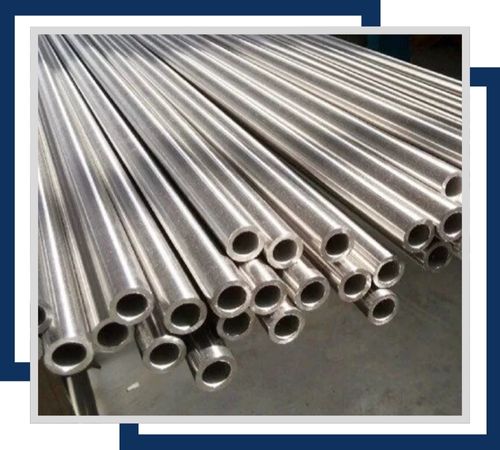

These pipes are known for their corrosion resistance and are produced by welding flat sheets. They are available in various sizes, from 15 mm to 200 mm in diameter, and are ideal for various applications.
Stainless Steel 301L Pipes find extensive use in automotive parts, welded structural components, transportation equipment, and architectural projects. These pipes are especially well-suited for systems that require a high strength-to-weight ratio, such as railings, enclosures, and frames. Their corrosion resistance and low carbon content make them ideal for applications that involve a lot of welding, without the risk of sensitization. SS 301L pipes perform reliably in environments that are exposed to moisture, chemicals, or mild acids, making them a versatile option for various fabrication and construction needs.
