Khaleed Stainless stands out as a top manufacturer and supplier of high-quality Stainless Steel 253MA Sheets and Plates in Riyadh, Saudi Arabia. We provide materials that excel in extreme conditions, making them perfect for various industries. SS 253MA is a unique alloy of chromium, molybdenum, and nitrogen, crafted for outstanding resistance to corrosion and oxidation, even at high temperatures. Our sheets and plates are meticulously engineered to meet international standards, ensuring they boast excellent dimensional accuracy, a smooth surface finish, and remarkable durability. They’re ideal for sectors like petrochemical, power generation, chemical, and marine, delivering reliable performance in tough environments.
Stainless Steel 253MA Sheets and Plates are composed of about 22% chromium, 12% nickel, 0.7% molybdenum, 0.3% nitrogen, and 0.15% carbon, along with trace amounts of manganese and silicon. They feature a tensile strength of roughly 700 MPa, a yield strength of 290 MPa, an elongation of 30%, and a Brinell hardness of around 215 HB. This alloy’s makeup guarantees excellent creep and oxidation resistance up to 1100°C, along with impressive mechanical stability at high temperatures. Additionally, SS 253MA sheets and plates offer great weldability, toughness, and resistance to thermal fatigue, making them perfect for critical industrial and structural uses.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Cr | Ni | Si | C | Mn | P | S | N | Ce | Fe | |
|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 20.00 | 10.00 | 1.40 | 0.05 | – | – | – | 0.14 | 0.03 | Balance |
| MAX | 22.00 | 12.00 | 2.00 | 0.10 | 0.80 | 0.04 | 0.03 | 0.20 | 0.08 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Reduction Area,% |
|---|---|---|---|---|
| 253 MA | 87,000 | 45,000 | 40 | 50 |
Contact us to get a quick quote for your requirement.

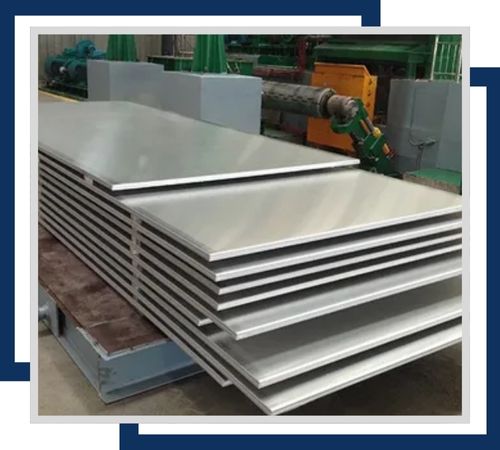

Hot-rolled stainless steel 253MA sheets are manufactured by a process known as hot rolling at elevated temperatures, ensuring robust and tough materials. Thickness usually ranges between 3mm to 100mm. Excellent resistance to corrosion and oxidation in a high temperature is one of its excellent characteristics.

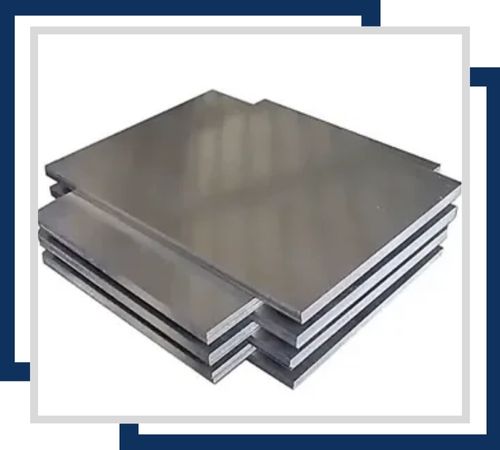

These stainless steel 253MA cold rolled plates are made at room temperature, giving these plates a smooth finish with very precise dimensions. Thickness is available from 0.3mm up to 3mm and offers high resistance against corrosion. They are ideal for applications wherein tight tolerances and high quality of surface finish can be achieved.

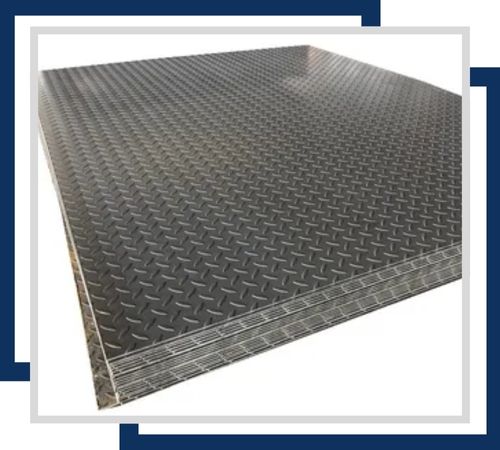

Stainless Steel 253MA Chequered Sheets provide a raised diamond pattern for improved grip and aesthetics. Available in gauges between 3mm and 12mm, these sheets have corrosion resistance properties. The product is widely used in floorings, walkways, and decorative applications.

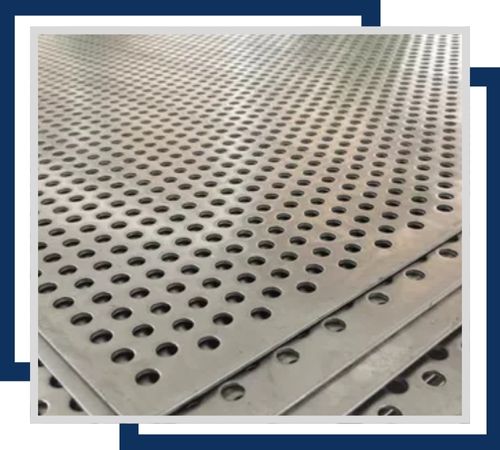

Stainless Steel 253MA perforated plates offer evenly spread holes, used for ventilation, filtration, and decorative purposes. They offer these plates in various hole sizes, available from 0.5mm to 5mm thickness. They have excellent corrosion resistant and good for applications where they need to allow airflow and drainage.

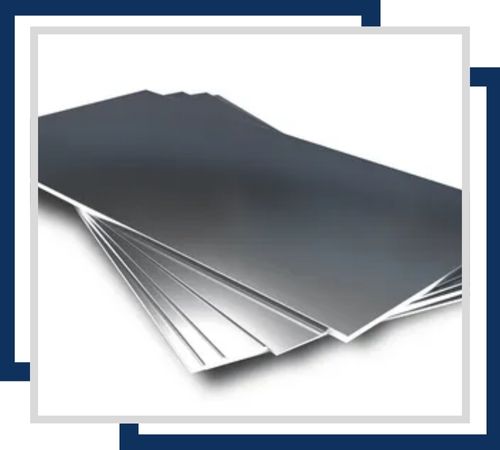

Stainless Steel 253MA Shim Sheets are thin and precise sheets applied for adjustments and alignment in machinery and structures. They are offered in a variety of thickness from 0.1mm up to 3mm. Their excellent corrosion resistance makes them critical for tight tolerance applications in numerous industries.

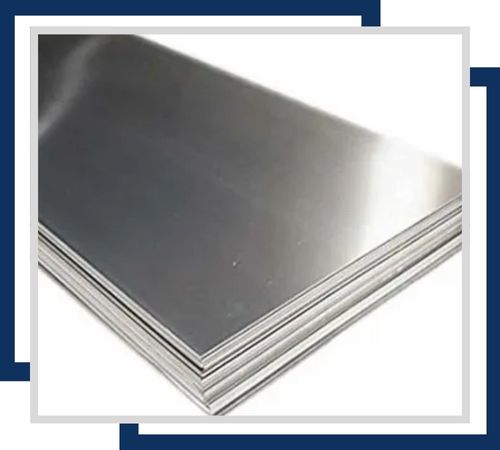

Stainless Steel 253MA Polished Plates are buffed to a reflective, mirror-like finish. The plates are available in thicknesses from 0.3mm to 50mm. They are used in architectural, decorative, and high-visibility applications due to their superior corrosion resistance.
Khaleed Stainless prioritizes delivering a seamless customer experience backed up by thorough documentation of the premium-quality Stainless Steel 253MA Sheets and Plates. Essential documents include the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents create authenticity and superior quality of our products that earn the trust of our esteemed clients. Moreover, we offer Stainless Steel 253MA sheets and plates with various test certificates including MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report and Third-Party Inspection Certificate. These test certificates indicate our customer-centric approach while achieving excellence in every product.
Stainless Steel 253MA Sheets and Plates find extensive applications in boilers, heat exchangers, furnace components, pressure vessels, and chemical processing equipment where high-temperature performance is essential. Their superior corrosion and oxidation resistance make them a go-to choice for petrochemical plants, power generation facilities, offshore platforms, and marine engineering projects. These sheets and plates are also ideal for fabricating structural components, industrial machinery, and high-performance mechanical parts that face extreme heat and corrosive conditions.
