Home > Sheet and Plates > Stainless Steel 201 Sheet and Plates
Khaleed Stainless stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, offering a wide range of high-quality stainless steel products tailored for various industrial needs. Among their standout products, the Stainless Steel 201 Sheets and Plates are particularly prized for their impressive strength, durability, and decent resistance to corrosion. Crafted with meticulous attention to detail and adhering to strict international standards, these sheets and plates deliver exceptional dimensional accuracy, mechanical strength, and long-lasting performance. Khaleed Stainless is committed to ensuring that every product meets essential industrial specifications, making them a reliable choice for sectors like automotive, construction, chemical processing, and general engineering throughout Saudi Arabia.
The Stainless Steel 201 Sheets and Plates are made up of 16–18% chromium, 3.5–5.5% nickel, and 5.5–7.5% manganese, along with trace amounts of carbon and silicon. This specific blend offers moderate corrosion resistance while ensuring high tensile strength and toughness. In terms of mechanical properties, these sheets and plates showcase excellent tensile and yield strength, good ductility, and stability when under mechanical stress. Their capacity to handle dynamic loads and their formability make them perfect for a variety of industrial and structural applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

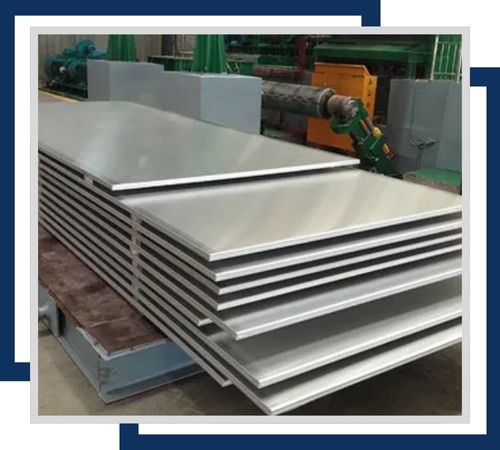

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

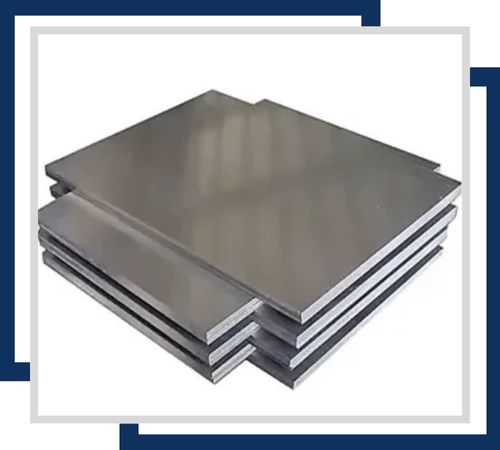

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.

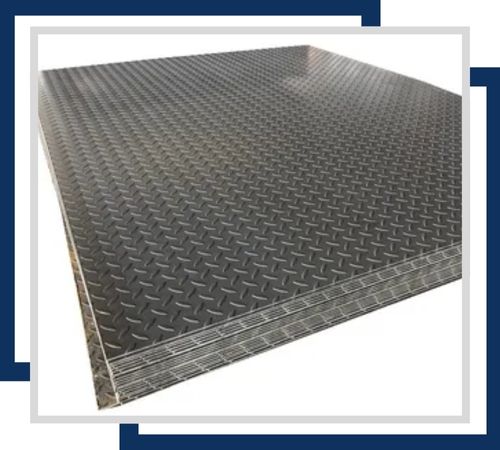

Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

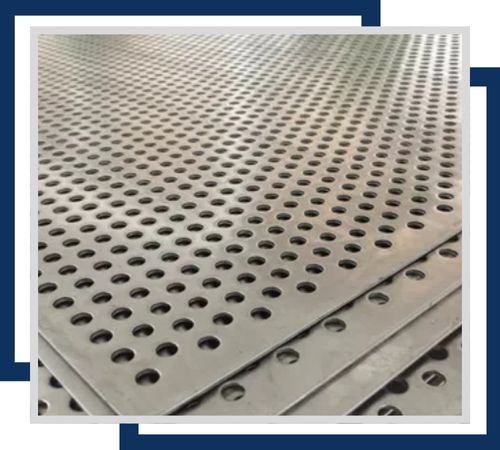

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

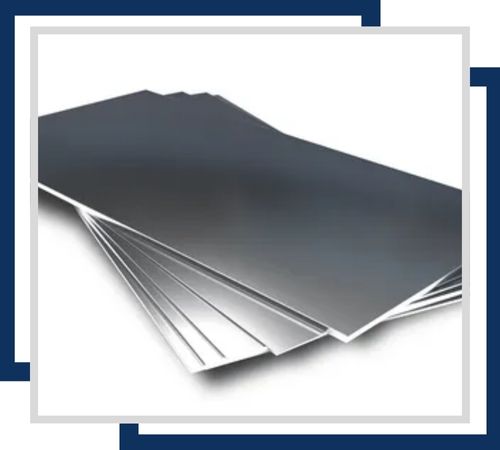

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.

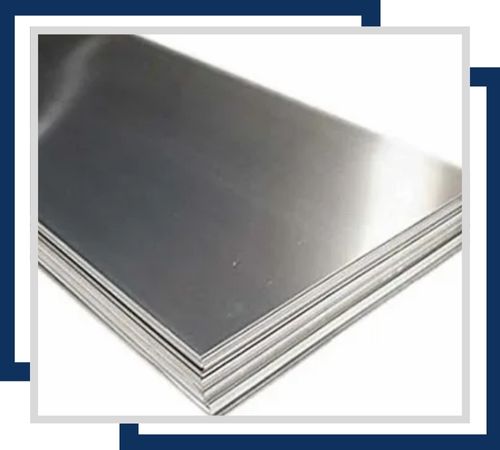

Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Khaleed Stainless assures hassle-free delivery while giving detailed documents regarding high-quality Stainless Steel 201 Sheets and Plates. It issues a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and an NABL-approved lab test report that verify the genuinity and exceptional quality of products and help generate trust in its valuable customers. In addition, our Stainless Steel 201 Sheets and Plates are offered with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. The certifications show how we are completely customer-centric as well as strongly committed to quality products.
These Stainless Steel 201 Sheets and Plates are extensively utilized in scenarios that demand durability, strength, and moderate corrosion resistance. They are particularly well-suited for crafting machinery components, structural elements, storage tanks, pipelines, and automotive parts. Industries such as automotive, construction, chemical processing, and general engineering depend on these sheets and plates for safe, durable, and dependable material solutions. Their corrosion resistance not only minimizes maintenance needs but also guarantees consistent long-term performance in mildly corrosive and challenging industrial settings.
