Khaleed Stainless is a reputable manufacturer and supplier of top-quality stainless steel products based in Riyadh, Saudi Arabia, with a focus on SS 422 Sheets and Plates. These products are celebrated for their impressive mechanical strength, durability, and decent corrosion resistance in mild environments. Tailored for rigorous engineering and industrial applications, Khaleed Stainless provides precision-engineered sheets and plates that adhere to international standards. The company has become a go-to supplier throughout Saudi Arabia and the GCC, serving clients in sectors like aerospace, automotive, defense, and general manufacturing.
The SS 422 Sheets and Plates from Khaleed Stainless are crafted from a martensitic stainless steel alloy that contains around 12–14% chromium, along with added molybdenum and a higher carbon content. This unique blend allows the material to be heat treated, achieving high tensile strength—often surpassing 900 MPa—and exceptional wear resistance. SS 422 also provides moderate corrosion resistance and remains stable in high-temperature applications, making it suitable for both structural and heat-treated components.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.
SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.
SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.
SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

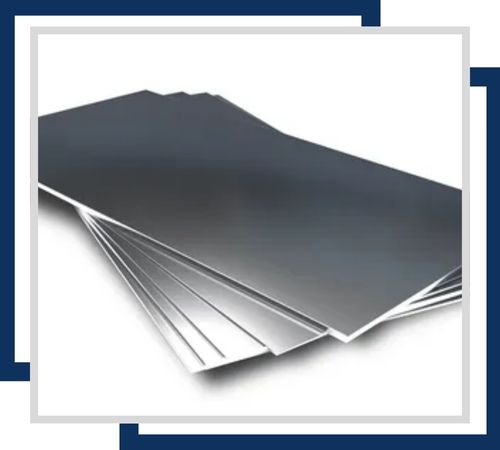

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.

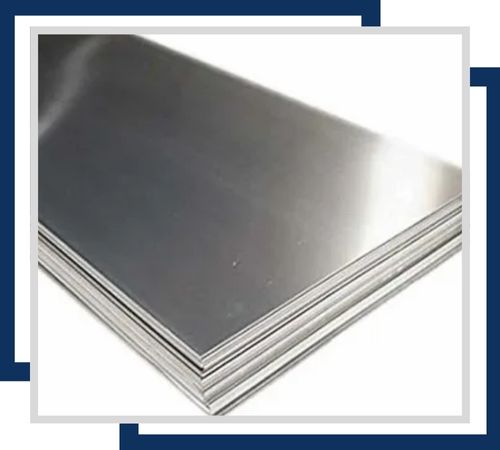

SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
Khaleed Stainless is committed to delivering a seamless customer experience by providing complete documentation for the Stainless Steel 422 Sheet and Plate products, ensuring top-notch quality. Commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plans, and NABL-approved lab test reports are given from Khaleed Stainless. These papers are proof of our authenticity and superior quality products. Furthermore, we provide test certificates for our Stainless Steel 422 Sheets and Plates, which include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which demonstrate our customer-centric approach and excellence.
Khaleed Stainless’s SS 422 Sheets and Plates find extensive use in applications that demand strength, toughness, and resistance to wear and fatigue. They are commonly utilized in turbine components, aerospace parts, shafts, valves, and robust mechanical structures. These plates and sheets are perfect for environments where high strength and moderate corrosion resistance are crucial. Their outstanding machinability and capacity to be hardened through heat treatment make them a dependable choice for challenging industrial and mechanical applications.
