Home > Sheet and Plates > SS 415 Sheet and Plates
Khaleed Stainless is a trusted and well-established manufacturer and supplier of stainless steel products based in Riyadh, Saudi Arabia, with a focus on SS 415 Sheets and Plates. These sheets and plates are recognized for their impressive strength, good hardenability, and resistance to corrosion in mildly aggressive environments, all while adhering to international standards. Khaleed Stainless delivers durable, heat-treatable solutions that cater to various industries, including automotive, aerospace, construction, and general engineering across Saudi Arabia and the GCC region.
The SS 415 Sheets and Plates are crafted from a martensitic stainless steel alloy that typically contains 11.5–13.5% chromium, along with added carbon and manganese to boost strength and hardness. These materials can undergo heat treatment to achieve outstanding mechanical properties, with tensile strength values soaring above 800 MPa. They provide moderate corrosion resistance and excellent wear resistance, making them perfect for both structural and mechanical components that face limited corrosive conditions.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.

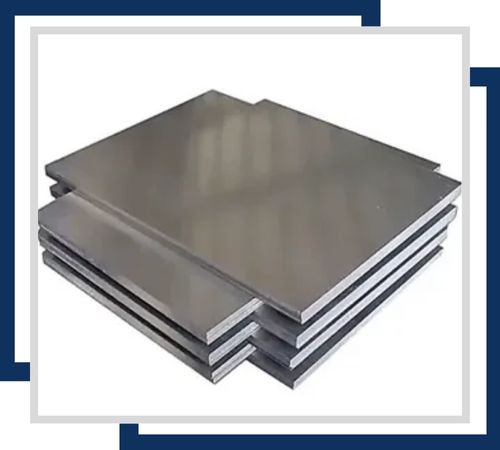

SS 415 Cold Rolled Sheets are stainless steel sheet with a bright surface finish, high strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

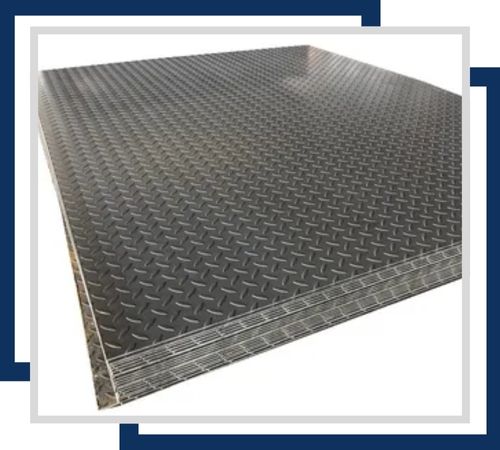

SS 415 chequered plates are stainless steel sheets with raised, textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

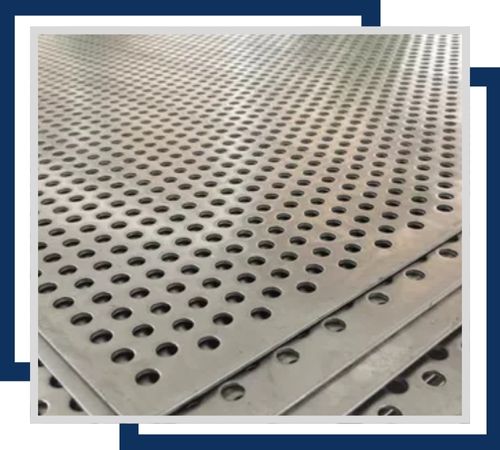

SS 415 perforated plates are of high-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

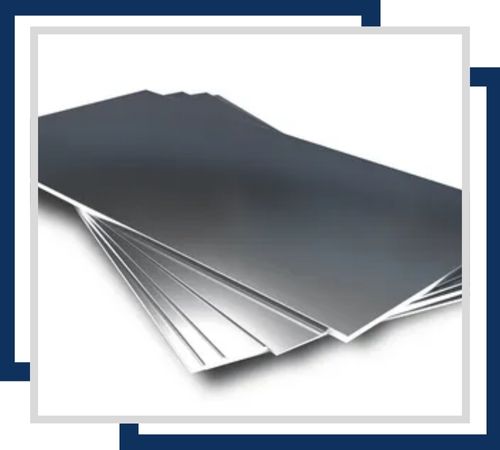

SS 415 Shim Sheets are precision engineered stainless steel sheets for industrial purposes. These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

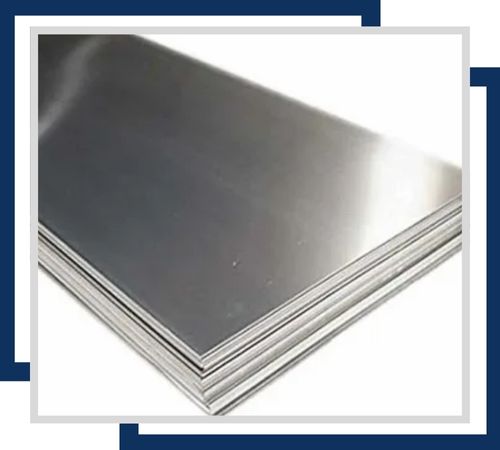

SS 415 Polished Plates are stainless steel sheets of great quality, highly recognized for corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
Khaleed Stainless maintains a commitment for hassle-free experiences for our esteemed customers. Here, at this company, our high-quality SS 415 Sheet and Plates shall be offered completely documented to create a better buyer-seller market. Documents as commercial invoices, Packing lists, fumigation certificates, Heat Treatment Charts, QA plans, along with the Test Reports done with NABL approvals, these add value in maintaining the genuity and outstanding quality of products produced by this unit. In addition, we provide Stainless Steel 415 Sheets and Plates with various test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificates, in order to prove our commitment to product excellence and customer satisfaction.
Khaleed Stainless’s SS 415 Sheets and Plates find their way into applications like pump shafts, bolts, valves, gears, and other precision-machined parts. Their heat treatability, dimensional stability, and hardness make them a great choice for components that demand strength and wear resistance. These sheets and plates offer a cost-effective solution for industries in need of dependable stainless steel materials for high-stress or lightly corrosive environments.
