Home > Electrodes > AWS Class ER410 Mig & Tig Filler Welding Wire & Rod
Khaleed Stainless stands out as a top manufacturer and supplier of AWS Class ER410 MIG and TIG Filler Welding Wire and Rod in Riyadh, Saudi Arabia. They specialize in providing high-performance welding consumables tailored for the industrial and engineering sectors. The ER410 filler metal is a martensitic stainless steel designed specifically for welding 12% chromium steels. It creates robust, hard weld deposits that boast impressive resistance to corrosion, oxidation, and abrasion. Whether you’re using MIG or TIG processes, ER410 ensures smooth arc stability, reliable feeding, and outstanding mechanical performance, making it a go-to choice for both fabrication and repair tasks.
The AWS Class ER410 filler wire is composed of chromium (11.5–13.5%), carbon (0.08–0.15%), manganese, silicon, and small amounts of nickel. This well-balanced mix delivers high hardness along with moderate corrosion resistance. In terms of mechanical properties, it offers a tensile strength of around 650–750 MPa, a yield strength of about 450 MPa, and an elongation rate of 15–20%. The weld deposit has a martensitic structure, providing excellent wear resistance. To minimize cracking and achieve the desired toughness, preheating and post-weld heat treatment are recommended.
| Classification | AWS A5.9, ER410 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410 MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.12 | 11.5-13.5 | 0.6 | 0.75 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 78 |
| Tensile Strength, kpsi: | 89 |
| Elongation%, min: | 24 |
Contact us to get a quick quote for your requirement.

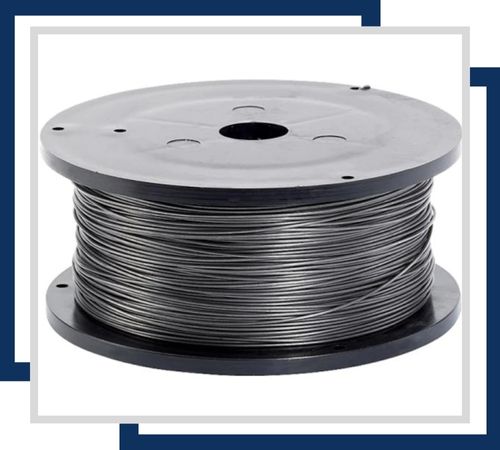

ER410 MIG filler wire offers high strength and wear resistance, ideal for welding martensitic stainless steels in applications requiring durability and high-temperature performance.

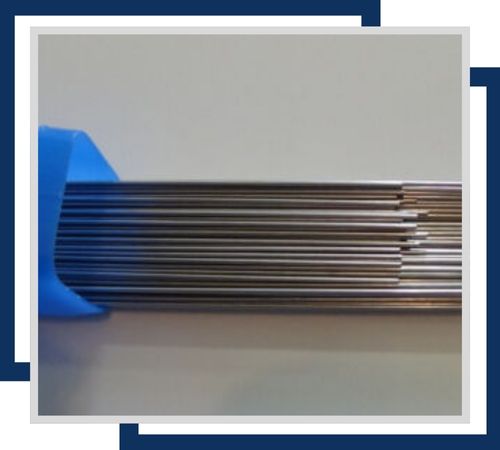

ER410 TIG filler wire provides excellent hardness and abrasion resistance, suitable for welding stainless steel components exposed to high stress and wear, ensuring strong, durable joints.

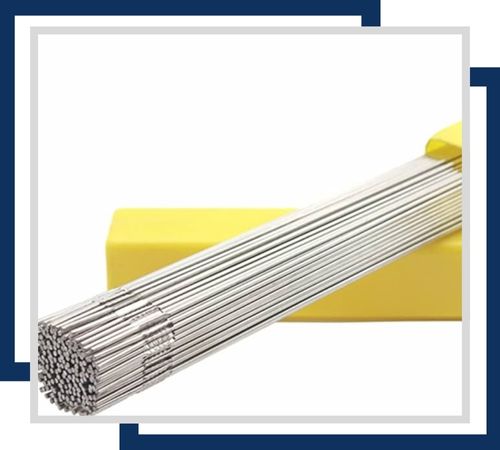

ER410 TIG filler rod delivers superior hardness and wear resistance, used for welding martensitic stainless steels in high-stress environments, offering strong, reliable welds and durability.
Each AWS Class ER410 MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials. To prevent any damage or corrosion during transit. We are committed to guaranteeing customer satisfaction by providing timely deliveries. Through efficient transportation methods. Along with the products, we also supply all the necessary documentation to our clients at the time of delivery, ensuring complete transparency and support throughout the process.
AWS class ER410 MIG and TIG filler welding wires and rods are used to weld martensitic stainless steel requiring high strength and wear resistance These wires are ideal for applications of components subjected to severe damage and high temperatures, as repair tools frequently exposed to abrasive conditions and high stress environments They are used. In addition, ER410 fillers are used in the manufacture of parts required to withstand thermal cycling and corrosion. Their toughness and durability make them suitable for applications including automotive, aerospace and heavy construction.
