Home > Electrodes > AWS Class ER317L Mig & Tig Filler Welding Wire & Rod
Khaleed Stainless is a reputable manufacturer and supplier of AWS Class ER317L MIG and TIG Filler Welding Wire and Rod based in Riyadh, Saudi Arabia. They specialize in providing top-notch welding consumables tailored for industrial applications. The ER317L filler wire is crafted from low-carbon austenitic stainless steel, making it ideal for welding 317L and similar grades. It boasts impressive resistance to pitting, crevice corrosion, and general corrosion, especially in chloride and acidic environments. With its excellent weldability, smooth arc stability, and minimal spatter, this wire is a go-to choice for industries that demand reliable performance and corrosion-resistant welds.
The AWS Class ER317L Welding Wire and Rod is made up of chromium (18–20%), nickel (12–14%), molybdenum (3–4%), and carbon at a maximum of 0.03%. This low carbon content helps prevent carbide precipitation during the welding process, which in turn reduces the risk of intergranular corrosion. In terms of mechanical properties, it features a tensile strength ranging from 550 to 620 MPa, a yield strength of about 300 to 350 MPa, and an elongation of 30 to 35%. The weld metal produced is known for its high toughness, excellent crack resistance, and outstanding corrosion resistance, even in harsh service conditions.
| Classification | AWS A5.9, ER317L |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER317L MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 18.5-20.5 | 13.0-15.0 | 3.0-4.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Tensile Strength, kpsi: | 83* |
| Yield Strength, kpsi: | 60* |
| Elongation %: | 42* |
Contact us to get a quick quote for your requirement.

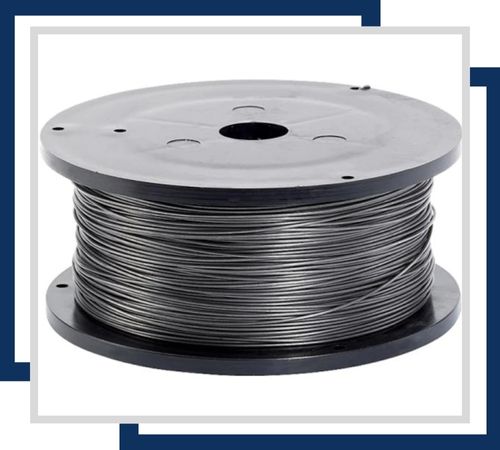

This MIG filler wire is available in sizes such as 0.030″, 0.035″, and 0.045″ diameter. It offers excellent corrosion resistance and is ideal for welding stainless steels with high molybdenum content. Its low carbon content helps minimize carbide precipitation.

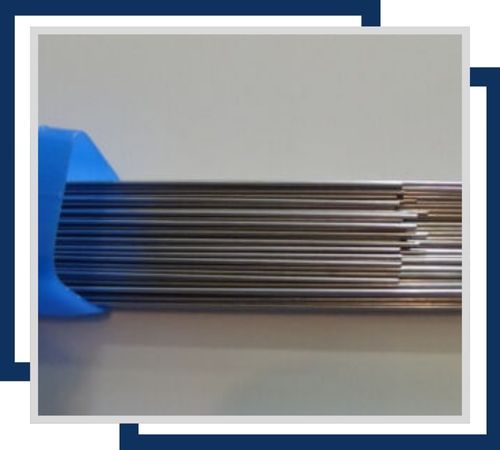

Available in diameters like 1/16″, 3/32″, and 1/8″, this TIG filler wire provides superior corrosion resistance. It is suitable for welding similar stainless steel alloys and maintains a low carbon content to prevent carbide formation.

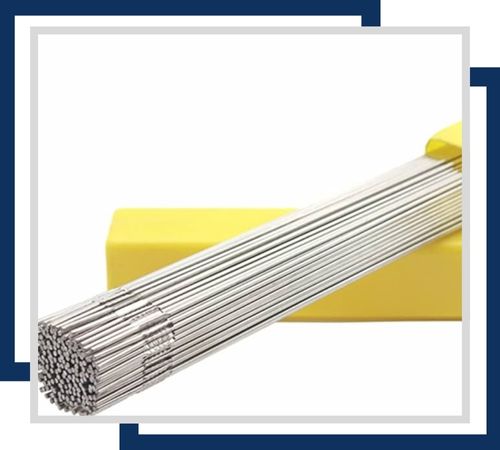

Typically offered in sizes of 1/16″, 3/32″, and 1/8″ diameter, this filler rod is known for its excellent resistance to corrosion and high strength. It’s designed for use in TIG welding applications requiring enhanced resistance to pitting and crevice corrosion.
After manufacturing, our quality control team conducts both destructive and non-destructive tests using advanced tools to ensure the performance and reliability of the AWS Class ER317L MIG and TIG Filler Welding Wire and Rod. Once tested we pack the products securely to maintain their quality during transit and ensure timely delivery to customers. All relevant documents are provided to clients at the time of delivery for full transparency and assurance.
AWS Class ER317L is primarily used for welding austenitic stainless steels such as 317 and 317L. Offering excellent corrosion resistance and oxidation and pitting in a variety of environments. Including acidic and chloride-containing solutions. ER317L is suitable for incorporation into stainless steel in industries such as pharmaceutical, food processing, pharmaceutical, pulp and in papermaking. The low carbon content reduces the risk of carbide precipitation, making it ideal for applications where post-weld heat treatment is not feasible or practical on the snow.
