Home > Electrodes > AWS Class ER316/316L MIG & TIG Filler Welding Wire & Rod
Khaleed Stainless stands out as a leading manufacturer and supplier of AWS Class ER316/316L MIG and TIG Filler Welding Wire and Rod in Riyadh, Saudi Arabia. They provide top-notch welding consumables that cater to a variety of industries. These filler wires and rods are specifically crafted for welding 316 and 316L stainless steels, which are celebrated for their remarkable corrosion resistance, excellent weldability, and toughness. Thanks to their low carbon content, they significantly reduce the risk of carbide precipitation during the welding process, ensuring outstanding intergranular corrosion resistance. With features like smooth arc stability and strong welds, they are perfect for critical fabrication tasks.
Typically, AWS Class ER316/316L MIG and TIG Filler Welding Wire and Rod consist of chromium (18–20%), nickel (11–14%), molybdenum (2–3%), and a carbon content of ≤0.03% for the “L” grade. This low carbon content boosts resistance to sensitization and intergranular corrosion. In terms of mechanical properties, they boast a tensile strength of around 550–620 MPa, a yield strength of about 300 MPa, and an elongation of 30–35%. The weld deposits are known for their high toughness, excellent resistance to pitting and crevice corrosion, and dependable performance in environments rich in chlorides.
| Classification | AWS A5.9, ER316/316L |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316/316L MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.03 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.30-0.65 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 80 |
| Tensile Strength, kpsi: | 55 |
| Elongation%, min: | 40 |
Contact us to get a quick quote for your requirement.

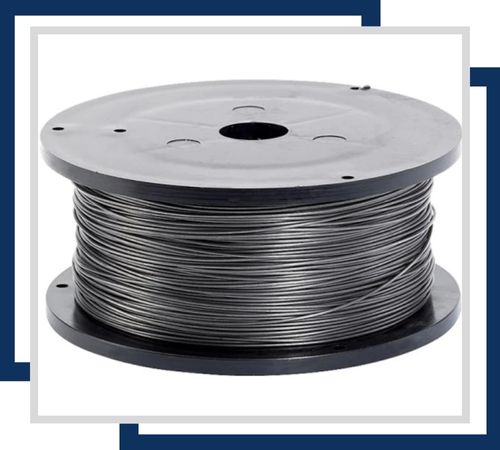

ER316/316H MIG filler wire provides excellent corrosion resistance and strength, ideal for welding stainless steels in chemical, petrochemical, and marine applications, with high durability in harsh environments.

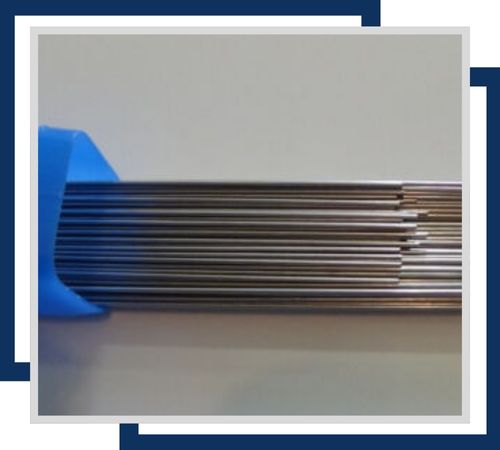

ER316/316H TIG filler wire ensures superior corrosion resistance and strength for precise welding of stainless steels, suitable for high-temperature environments in industries like chemical processing and aerospace.

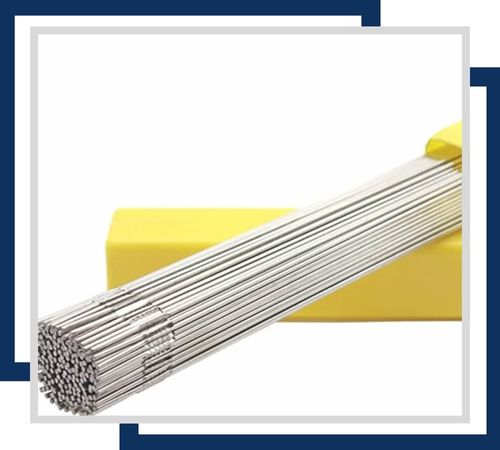

ER316/316H TIG filler rod offers excellent resistance to corrosion and high temperatures, ideal for welding and repairing stainless steel components in demanding applications, including chemical and marine industries.
AWS class 316/316L for MIG and TIG welding wire or rod requires careful packing with high standard materials for safe delivery in order to prevent defect and contamination during shipping. Although we always try to go for on-time shipment. We prioritize the satisfaction of our customers through effective transportation options. In this effort all vital information concerning the product is disclosed to the customer through the accompanying data upon delivery, so they may rest assured of the transparency facility.
AWS class ER316/316L MIG and TIG filler welding wires and rods are widely used for stainless steel welding in applications. Requiring high corrosion resistance and excellent weldability. ER316 is ideal for chloride and chemical environments. Making it suitable for industries such as petrochemical, marine, and food processing. ER316L, with its low carbon content, is preferred for welding thin materials and applications where intergranular corrosion resistance is critical Both fillers are used in tanks, pipes, pressure vessels and other manufacturing and and repair to ensure strong, durable welds that can withstand harsh and damaging conditions.
